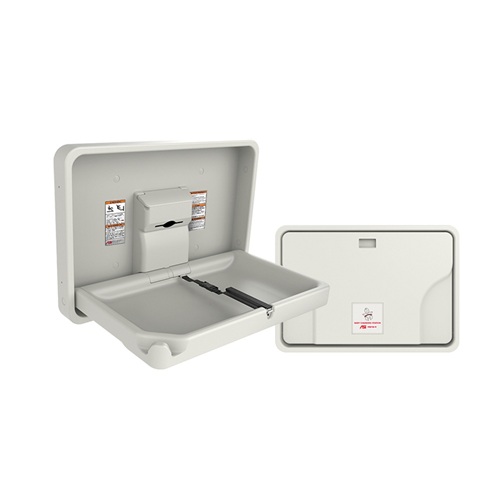

ASI 9014 Horizontal Surface-Mounted Baby Changing Station
Made of FDA-approved, fungus- and bacteria-resistant plastic, this station is designed for an infant up to 3½ years old and 50 lb (23 kg). Its shaped platform helps keep a child from rolling out of the bed. The adjustable, vinyl-coated safety strap has a Sure-Lock latch that resists opening until released by an adult caregiver with opposing finger pressure.
The unit opens and closes with one hand from any location and operates with less than 5 lb (22.2 N) of force, without tight grasping, pinching, or wrist twisting. A handle cavity is provided on the door face. The integral dispenser presents bed liners or towels; its lid protects the contents and makes loading wipes or liners easier. Service personnel can replenish liners or towels. One bag hook is included.
Closed dimensions: 35-5/32" x 24-1/4" x 3-7/8" (893 x 616 x 98 mm). Open dimensions: 35-5/32" x 24-1/4" x 22-1/32" (893 x 616 x 560 mm).
Mounting and installation
This is a surface-mounted unit. Supplied hardware is suitable for metal or wood studs in dry locations and general hollow-wall construction where the substrate is strong enough. Masonry fasteners and anchors are not supplied; wall reinforcement must support transfer of the maximum unit loading. The manufacturer's installation guidance for compliance with the 2010 ADA Accessibility Standards specifies a 30-1/4" AFF top edge. Refer to the instructions supplied with the unit for installation details.
