ASI 9022 Horizontal Plastic/Stainless Steel Baby Changing Station

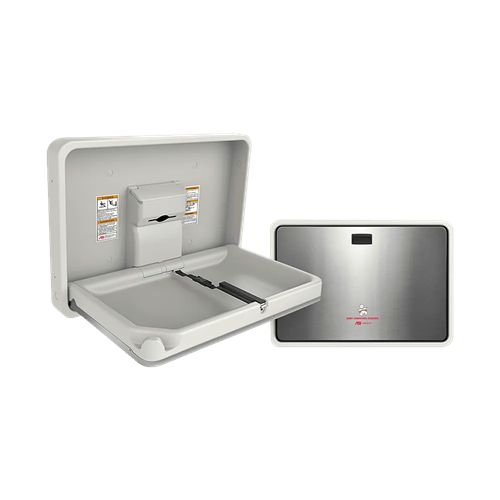

The ASI 9022 is a surface-mounted horizontal baby changing station with an FDA-approved, fungus- and bacteria-resistant HDPE bed and a satin-finish Type 304 stainless steel door facing. It is designed for infants up to 3.5 years old and 50 lb (23 kg), with a shaped platform and adjustable safety strap.
Key specifications and features
- 20-gauge Type 304 stainless steel door facing in satin finish; HDPE changing bed.
- Vinyl-coated adjustable strap with Sure-Lock latch; the shaped platform is designed to cradle the child.
- Damped gas spring aids one-handed opening and closing with less than 5 lb (22.2 N) of force, without tight grasping, pinching, or wrist twisting.
- Integral bag hook and covered bed-liner dispenser, convertible to a multi-fold towel dispenser. Replenish liners or towels through the dispenser as needed.
- Closed dimensions: 35-5/32" x 24-1/4" x 3-7/8" (893 x 616 x 98 mm). Open dimensions: 35-5/32" x 24-1/4" x 22-1/32" (893 x 616 x 560 mm).
Mounting and placement
Mounting hardware is supplied for metal or wood stud walls in dry locations and for general hollow-wall construction where the substrate is strong enough. Masonry fasteners and anchors are not provided, and wall reinforcement must support the transferred load. The manufacturer's installation guidance for the 2010 ADA Accessibility Standards specifies a top table edge at 30-1/4" (768 mm) above the finished floor; confirm project-specific requirements and follow the supplied installation instructions. Never leave a child unattended on the station.
