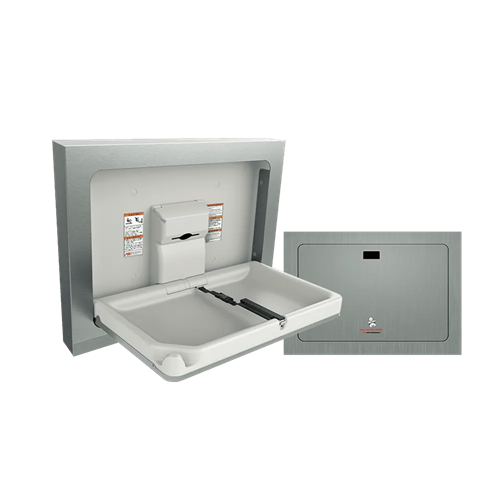

ASI 9018-9 Surface-Mounted Horizontal Stainless Steel Baby Changing Station
The ASI 9018-9 is a horizontal baby changing station for commercial restrooms where a surface-mounted installation with a stainless steel collar is preferred. Its door facing and collar are satin-finish 20-gauge Type 304 stainless steel, and its changing bed is FDA-approved, fungus- and bacteria-resistant HDPE.
Specifications and features
- Supports an infant up to 3-1/2 years old and 50 lb (23 kg); ASI reports development testing to a 250 lb (113 kg) static load with minimal deflection.
- Closed dimensions: 39-5/32 x 28-1/4 x 3-5/16 inches (995 x 718 x 84 mm); open dimensions: 39-5/32 x 28-1/4 x 18-1/8 inches (995 x 718 x 460 mm).
- Includes an adjustable, two-part vinyl-coated safety strap with Sure-Lock latch, an integral bag hook, and a bed-liner dispenser convertible to a multi-fold towel dispenser.
- A damped gas spring supports one-handed operation with less than 5 lb of force, without tight grasping, pinching, or wrist twisting, according to ASI.
- ASI states that the unit complies with the 2010 ADA Accessibility Standards and the other standards listed in its specification sheet; installation conditions matter.
Mounting and servicing
ASI's installation guidance for 2010 ADA Accessibility Standards specifies positioning the top edge of the changing table 30-1/4 inches (768 mm) above finished floor. Provide wall reinforcement adequate to transfer the maximum unit loading and choose fasteners suitable for the wall; masonry fasteners and anchors are not supplied. Follow the instructions packed with the unit. Service personnel can replenish the liner or towel dispenser as needed.
ASI lists a five-year warranty from the invoice date.
