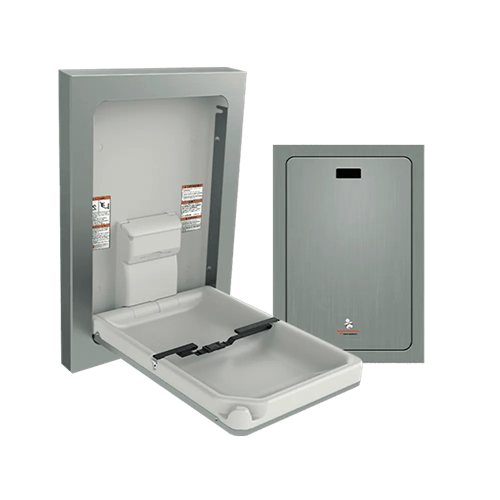

ASI 9017-9 Vertical Surface-Mounted Stainless Steel Baby Changing Station
The ASI 9017-9 is a vertical, surface-mounted baby changing station with a stainless steel collar. Its door facing and flange trim are 20-gauge Type 304 stainless steel with a satin finish; the changing bed is FDA-approved, fungus- and bacteria-resistant HDPE. It is intended for an infant up to 3½ years old and 50 lb (23 kg).
Specifications and features
- Dimensions: Closed: 28-1/4 × 39-5/32 × 3-5/16 in. (718 × 995 × 100 mm); open: 28-1/4 × 39-5/32 × 32-3/8 in. (718 × 995 × 822 mm).
- Operation: A damped gas spring aids one-handed opening and closing with less than 5 lb (22.2 N) of force. Operation does not require tight grasping, pinching, or wrist twisting; a handle cavity is provided on the door face.
- Changing surface and restraint: The platform is shaped to cradle the child and help restrain the child from rolling out. An adjustable two-part, vinyl-coated safety strap has a Sure-Lock latch that resists opening until released by opposing finger pressure from an adult caregiver.
- Supplies: Includes one integral bag hook and a bed-liner dispenser convertible to a multi-fold towel dispenser. The dispenser lid protects the contents and supports loading wipes or liners; service personnel can replenish liners or towels as needed.
- Development testing: ASI reports testing during development to sustain a 250 lb (113 kg) static load with minimal deflection. This is separate from the stated infant-use limit above.
Mounting and service
Check that the wall and reinforcement can transfer the maximum unit loading. The supplied hardware is specified for metal or wood stud walls in dry locations and general hollow-wall construction where adequate substrate strength is available; masonry fasteners and anchors are not supplied. ASI's installation instructions describe fastening at 16 in. (406 mm) stud centers and alternate methods for applicable wall conditions. Follow the instructions supplied with the unit. ASI lists a five-year warranty from the invoice date.
