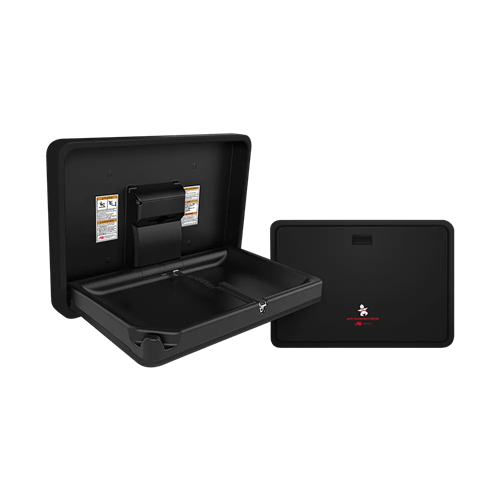

ASI 9026-41 Horizontal Plastic/Stainless Steel Baby Changing Station
The ASI 9026-41 is a surface-mounted horizontal baby changing station for infants up to 3½ years old and 50 lb (23 kg). Its FDA-approved, fungus- and bacteria-resistant HDPE bed has a shaped platform, and the unit has a matte-black Type 304 stainless steel door facing.
Specifications and features
- High-density polyethylene (HDPE) bed; 20-gauge Type 304 stainless steel door facing with matte-black finish.
- Shaped platform designed to cradle the child; adjustable two-part vinyl-coated safety strap with a Sure-Lock latch.
- Damped gas spring aids one-handed opening and closing with less than 5 lb (22.2 N) of force, without tight grasping, pinching, or wrist twisting. A handle cavity is provided on the door face.
- Includes an integral bag hook and a bed-liner dispenser convertible to a multi-fold towel dispenser. The dispenser lid provides sanitary protection and eases loading of wipes or liners; service personnel replenish liners or towels as needed.
- Closed dimensions: 35-5/32" W x 24-1/4" H x 3-7/8" D. Open dimensions: 35-5/32" W x 24-1/4" H x 22-1/32" D.
Mounting and placement
The supplied hardware kit has fasteners suitable for metal or wood stud walls in dry locations and general hollow-wall construction where the substrate is adequate. Masonry fasteners and anchors are not supplied; wall reinforcement must support the unit's maximum loading. For the manufacturer's stated 2010 ADA Accessibility Standards installation guidance, set the top edge of the changing table 30-1/4" above finished floor.
