ASI 204692A-9 Roval Surface-Mounted Automatic Roll Paper Towel Dispenser and Waste Receptacle

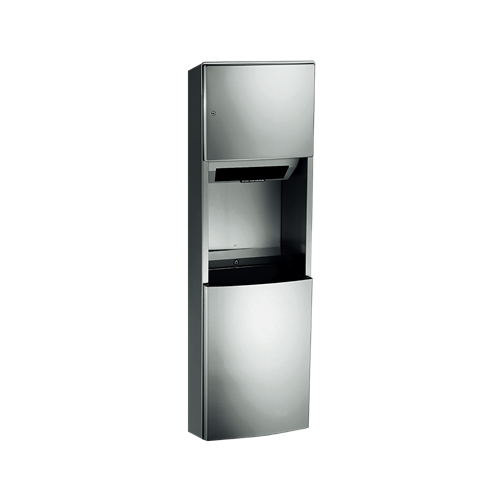

The ASI 204692A-9 is a surface-mounted automatic roll towel dispenser with a removable 17.8-gallon (67.2 L) waste receptacle and stainless steel collar. It is fabricated from 18-gauge Type 304 stainless steel with a satin finish.
Specifications and operation
- Overall dimensions: 17-5/8 inches wide x 56-5/16 inches high x 11-11/16 inches deep.
- Accepts roll towels up to 800 feet long.
- Set towel length, delay, and paper-saver (economy) options using the three switches.
- Towels dispense one length at a time when hands enter the sensor zone.
- The waste receptacle is removable and holds 17.8 gallons (67.2 L).
Installation and servicing
Mount the unit on the wall through the concealed mounting holes. Provide adequate in-wall reinforcement in drywall; appropriate anchors and #10 mounting screws are by others. For the stated ICC/ANSI A117.1-2003 and 2010 ADA accessibility standards, the top edge of the towel opening may be no higher than 48 inches above finished floor (AFF) only when clear-floor reach access is provided. Local codes may require a lower height, such as 40 inches AFF. For general utility, the manufacturer specifies 49 to 56 inches AFF to the top edge of the towel opening.
To refill, unlock the door and replace the roll. A partial roll can be transferred to the stub-roll position when loading a full roll. Empty the waste receptacle according to maintenance needs.
