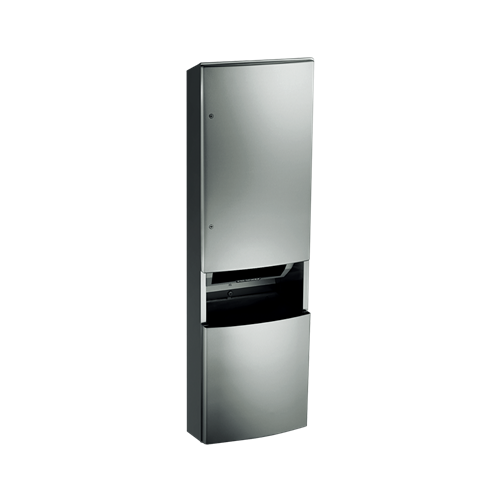

ASI 2046921A-9 Roval Surface-Mounted Automatic Roll Paper Towel Dispenser and Waste Receptacle
The ASI 2046921A-9 is a battery-powered, surface-mounted combination unit for washrooms needing touchless roll-towel dispensing and an integrated 13.5-gallon waste receptacle. Its sensor dispenses a preset towel length, and its 9-inch-collar configuration is intended for surface mounting.
Dispenser and waste-receptacle details
- Accepts standard roll towels 8 or 9 inches wide, up to 800 feet long; stub-roll capability supports continued dispensing when a partial roll is transferred to the stub position.
- Removable waste receptacle holds 13.5 gallons; an internal shelf provides paper-towel storage.
- Owner-adjustable switches set towel length, delay, and paper-saver/economy operation.
- Type 304 stainless steel construction with a satin finish; requires four D-size batteries, not included. The LED indicates sensing and battery condition.
- Unlock the door to replace an empty or partially empty roll. Replenish towels and batteries and empty the receptacle manually as maintenance needs require; the locking door and receptacle retainer help prevent unauthorized access and roll removal.
Installation and accessibility
Mount to the wall through the concealed mounting holes using #10 self-threading screws; screws and suitable anchors are by others. For drywall construction, provide adequate in-wall reinforcement. The manufacturer’s ICC/ANSI A117.1-2003 and 2010 ADA installation guidance places the top edge of the towel opening no higher than 48 inches AFF only when clear-floor reach access is provided. Local requirements may call for a 40-inch maximum, such as in California.
