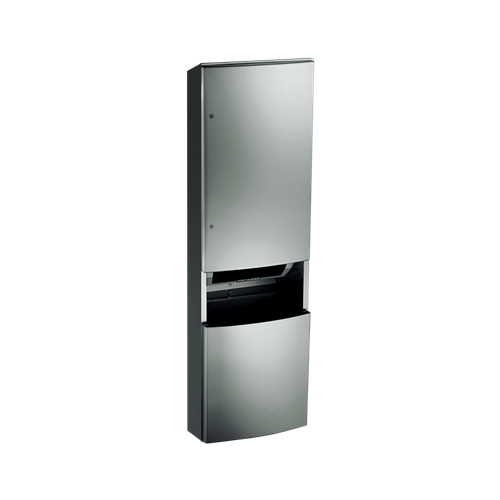

ASI 2046921AC-9 Roval Surface-Mounted Automatic Roll Towel Dispenser and Waste Receptacle
The ASI 2046921AC-9 is an AC-powered, surface-mounted Roval combination unit with automatic roll-towel dispensing and a 13.5-gallon waste receptacle. It accepts 8- or 9-inch-wide standard rolls up to 800 feet long and supports stub-roll feeding.
Specifications
- Type 304 stainless steel with satin finish; surface-mounted with a stainless steel collar.
- Dispenses a preset towel length when hands enter the sensor zone. Owner-adjustable switches set length, delay, and paper-saving mode.
- 13.5-gallon (51.1 L) removable waste receptacle; internal shelf provides paper-towel storage.
- Supplied low-voltage adapter: 110–240 VAC, 50/60 Hz input.
- Overall dimensions: 17-5/8 in. W × 56-5/16 in. H × 11-11/16 in. D.
Installation and maintenance
Provide in-wall reinforcement for drywall or suitable anchors for other wall conditions. Mounting screws and anchors are by others. The manufacturer specifies a code-approved power connection to a duplex outlet inside the cabinet. For the manufacturer’s stated accessibility guidance, install the top edge of the towel opening no higher than 48 in. above finished floor only when clear-floor reach access is provided; local requirements may set a lower maximum, such as 40 in.
To refill, unlock the door and replace an empty or partially used roll. A full roll can feed alongside a partial roll transferred to the stub-roll position. Replenish towels and empty the receptacle according to maintenance needs. The manufacturer lists a one-year warranty from invoice date.
