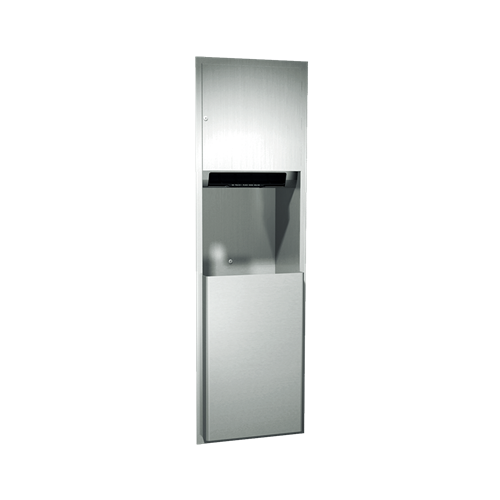

ASI 04692A Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle
The ASI 04692A is a battery-operated, proximity-sensing recessed combination unit for restrooms where a no-touch roll towel dispenser and 17-gallon waste receptacle are needed. It dispenses one preset towel length per cycle and accepts standard 8" or 9" wide rolls up to 800 ft. long, with stub-roll capability.
Key specifications
- Overall dimensions: 17-1/4" W x 56" H x 10-1/4" D.
- Waste capacity: 17 gal. (64 L); receptacle is emptied manually as needed.
- Power: four D-size batteries, not included.
- Cabinet, frame, and waste container: 22-gauge Type 304 stainless steel with satin finish.
- A full roll can be loaded while a partial roll is in use so dispensing can continue when the partial roll is depleted.
Recessed installation
Provide a minimum rough wall opening of 15-7/8" W x 54-5/8" H x 10-1/4" D. Install through the concealed mounting holes using #10 self-threading screws, which are by others. For installation guidance related to the 2010 ADA Accessibility Standards, the manufacturer advises setting the bottom edge of the towel dispenser door no more than 48" above the finished floor; this is not a blanket compliance determination.
