ASI 0387 Top-Fill Port and Multi-Feed Tank Kit

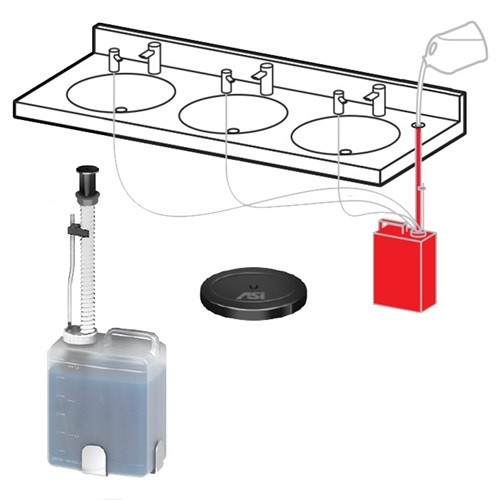

This kit adds a 1.6-gal. (6 L) tank and counter-mounted refill port to an ASI automatic liquid- or foam-soap dispensing system. Fill the tank from above the vanity, without removing the under-counter tank; one fill can supply up to 12 dispensers, with a maximum of six on each side. The translucent, seamless molded tank shows soap level. Use soap of the correct viscosity for the dispenser system and without abrasive or particulate content.
Kit only: control modules and dispensers are not included. Order model 0385 or 0386 control modules separately, with compatible dispensers. The tank connects to a control module by its supply tube and shutoff valve. The included 72-ACA AC adapter powers the unit; optional battery operation requires model 0385-BP, sold separately.
Installation and refilling
Plan for a 2-1/4-in. (57 mm) hole through a vanity top up to 2 in. (51 mm) thick, and space beneath the vanity for the tank and mounting bracket. The polished-chrome fill port has a snap-in anti-vandalism cover. Use the included suction tool and funnel with extension tubes to refill. The level sensors and LED indicate low soap and overfill status; the full-level sensor sounds a buzzer to signal when to stop filling. The LED also indicates battery conditions when the optional battery pack is used.
Includes 6 L tank and mounting bracket, counter fill port, suction tool, 72-ACA adapter, and funnel with extension tubes. Consult the installation guide for system setup and maintenance instructions.
