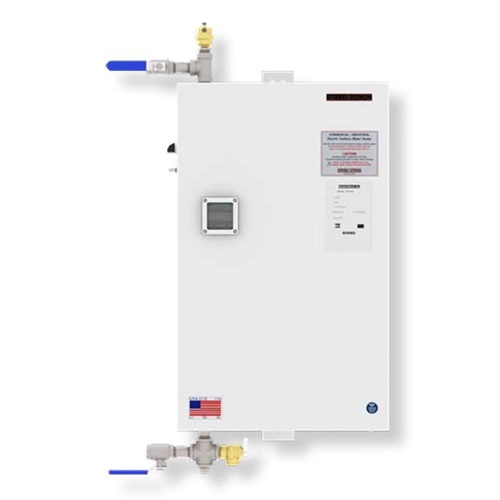

Stiebel Eltron CES Plus 48 kW (208V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 48 kW (208V Delta) is a high-capacity, industrial-grade tankless water heating solution engineered for the most rigorous commercial applications utilizing 208V 3-phase Delta electrical infrastructure. Identified by part number CESPLUS-048-208, this unit is designed to deliver a powerful 45.07 kW of instantaneous heating power. By providing a continuous and endless supply of hot water only when needed, it eliminates the massive standby energy losses and physical footprint of traditional storage tanks, making it the ideal thermal solution for large-scale facilities.
Performance & Electrical Specifications
The CESPLUS-048-208 is precision-engineered for maximum output in 208V systems, offering the robust thermal performance required for industrial sanitation, food service, and process heating.
- Power Output: 45.07 kW at 208V.
- Amperage: 125.09 Amps.
- Breaker Requirement: 150A (3-Pole).
- Temperature Rise Capability:
- 308°F rise at 1 gpm.
- 154°F rise at 2 gpm.
- 103°F rise at 3 gpm.
- 77°F rise at 4 gpm.
- 62°F rise at 5 gpm.
- Activation Rate: Features a sensitive 0.7 gpm (2.7 l/m) minimum activation threshold, ensuring reliable performance even with high-efficiency, low-flow fixtures.
- Maximum Flow Rate: Engineered to support substantial facility demands with flow capacities up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: The internal fluid paths are constructed from premium 316L stainless steel, offering maximum resistance to corrosion and scaling in demanding industrial environments.
- Precision Temperature Management: Offers a user-adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular adjustments in 1°F (1°C) increments to meet exact technical specifications.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For specialized environments requiring wash-down protection or resistance to corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Built to perform reliably within an operating pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, ensuring peak build quality and adherence to strict testing standards.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Equip your facility with the heavy-duty efficiency of the Stiebel Eltron CESPLUS-048-208. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
