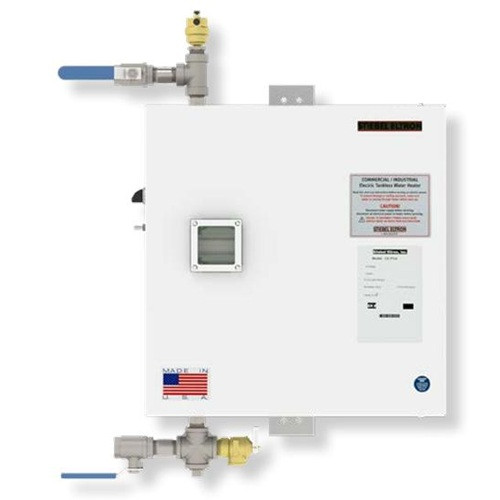

Stiebel Eltron CES Plus 36 kW (208V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 36 kW (208V Delta) is a high-capacity, industrial-grade tankless water heating solution engineered for the most demanding commercial environments utilizing 208V 3-phase Delta electrical service. Identified by part number CESPLUS-036-208, this unit is one of the most powerful configurations in the CES Plus lineup, delivering a massive 36.00 kW of instantaneous heating power. Designed to replace large, inefficient storage tanks, it provides a continuous, endless supply of hot water while significantly reducing energy overhead and reclaiming valuable floor space.
Performance & Electrical Specifications
The CESPLUS-036-208 is optimized for extreme thermal output in 208V systems, making it an ideal choice for high-flow sanitation, industrial manufacturing processes, and large-scale food service operations.
- Power Output: 36.00 kW at 208V.
- Amperage: 99.93 Amps.
- Breaker Requirement: 110A (3-Pole).
- Temperature Rise Capability:
- 246°F rise at 1 gpm.
- 123°F rise at 2 gpm.
- 82°F rise at 3 gpm.
- 61°F rise at 4 gpm.
- 49°F rise at 5 gpm.
- Activation Rate: Features a sensitive minimum activation flow of 0.7 gpm (2.7 l/m), ensuring reliable hot water delivery even when used with low-flow fixtures.
- Maximum Flow Rate: Ruggedly engineered to support heavy-duty facility demands with a flow capacity of up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: Built with a premium 316L stainless steel heat exchanger to ensure maximum longevity and superior resistance to scale and corrosion in harsh industrial water conditions.
- Precision Digital Control: Offers a user-adjustable temperature range from 60°F to 90°F (16°C to 32°C), with precise 1°F (1°C) increments to meet exacting technical and safety requirements.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For facilities requiring wash-down capabilities or protection in highly corrosive environments, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Reliably engineered for an operating pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, adhering to the highest standards of craftsmanship and technical excellence.
- Comprehensive Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Equip your high-demand facility with the peak performance of the Stiebel Eltron CESPLUS-036-208. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
