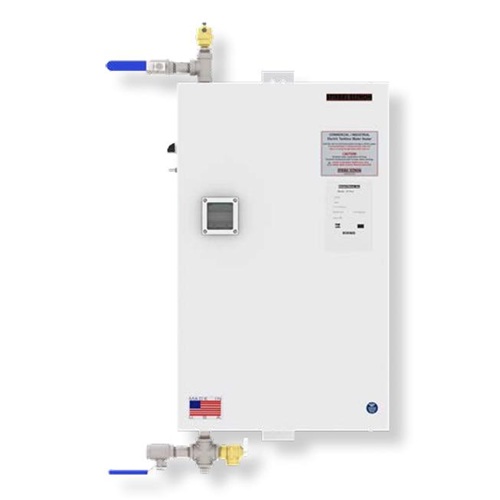

Stiebel Eltron CES Plus 72 kW (208V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 72 kW (208V Delta) is a high-capacity, industrial-grade thermal solution engineered for the most intensive commercial water heating demands. Identified by part number CESPLUS-072-208, this unit is one of the most powerful configurations in the CES Plus lineup, delivering a massive 72.00 kW of instantaneous heating power. Designed to supersede bulky, inefficient storage tank systems, it provides a relentless supply of hot water while drastically reducing energy consumption and reclaiming critical floor space in mechanical rooms.
Performance & Electrical Specifications
The CESPLUS-072-208 is optimized for high-volume thermal output in 208V 3-phase environments, making it the definitive choice for large-scale sanitation, industrial process heating, and heavy-duty food service applications.
- Power Output: 72.00 kW at 208V.
- Amperage: 199.85 Amps.
- Breaker Requirement: 225A (3-Pole).
- Temperature Rise Capability:
- 491°F rise at 1 gpm.
- 245°F rise at 2 gpm.
- 164°F rise at 3 gpm.
- 123°F rise at 4 gpm.
- 98°F rise at 5 gpm.
- Activation Rate: Features a sensitive 0.7 gpm (2.7 l/m) minimum activation flow, ensuring consistent performance even when utilized with high-efficiency, low-flow fixtures.
- Maximum Flow Capacity: Built to support high-demand facility infrastructure with a flow capacity of up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: Engineered with a premium 316L stainless steel heat exchanger to ensure maximum equipment longevity and superior resistance to scale and corrosion in rigorous industrial water conditions.
- Precision Temperature Control: Offers a user-adjustable temperature range from 60°F to 90°F (16°C to 32°C), adjustable in precise 1°F (1°C) increments to meet exacting safety and technical specifications.
- Rugged Enclosure Options: Comes standard in a NEMA 3 enclosure. For specialized environments requiring wash-down protection or resistance to highly corrosive atmospheres, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available.
- Industrial Pressure Rating: Reliably operates within a wide commercial pressure range of 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Compliance
- Safety Certifications: ETL Listed to ANSI/UL Std. 499 and conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, adhering to the highest standards of technical excellence and craftsmanship.
- Comprehensive Warranty: Includes a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Equip your facility with the peak industrial performance of the Stiebel Eltron CESPLUS-072-208. Secure the best market pricing or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical assistance.
