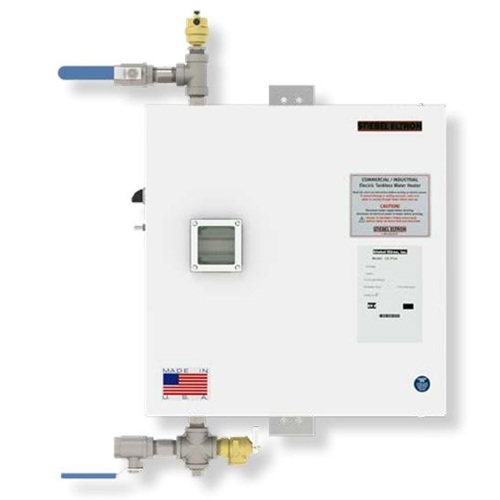

Stiebel Eltron CES Plus 15 kW (208V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 15 kW (208V Delta) represents a pinnacle of industrial-grade tankless water heating, specifically engineered for high-demand commercial environments. This model, part number CESPLUS-015-208, is designed for facilities utilizing 208V 3-phase Delta electrical architecture. By providing instantaneous, temperature-controlled water on demand, it eliminates the inefficiencies and standby heat losses associated with traditional storage tanks, offering a sustainable and space-saving thermal solution.
Performance & Electrical Specifications
The CESPLUS-015-208 is built to handle heavy commercial loads, delivering precise thermal performance for high-volume sanitation and process heating.
- Power Output: Delivers a robust 15.77 kW at 208V.
- Amperage: Draws 43.78 Amps.
- Breaker Requirement: Requires a 50A (3-Pole) breaker.
- Temperature Rise Capability:
- 108°F rise at 1 gpm.
- 54°F rise at 2 gpm.
- 36°F rise at 3 gpm.
- 27°F rise at 4 gpm.
- Activation Rate: Features an ultra-sensitive activation threshold of just 0.7 gpm (2.7 l/m).
- Flow Capacity: Capable of sustaining facility demands up to 10.6 gpm at 60 psi.
Advanced Industrial Engineering
- 316L Stainless Steel Heat Exchanger: Every unit is built with a premium 316L stainless steel heat exchanger, ensuring maximum durability and superior resistance to corrosive water conditions.
- Exacting Temperature Control: Users can adjust the water temperature between 60°F and 90°F (16°C to 32°C) in granular 1°F (1°C) increments for specialized technical needs.
- Rugged NEMA Protection: The heater comes standard with a NEMA 3 enclosure. For more extreme environments, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available to withstand wash-down or highly corrosive atmospheres.
- Operating Pressure Range: Designed to work reliably under pressures from 4 to 145 psi (0.28 to 10 bar).
Quality Assurance & Certifications
- Safety Compliance: ETL Listed and certified to ANSI/UL Std. 499, while conforming to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States, maintaining the highest standards of industrial craftsmanship.
- Superior Warranty: Protected by a 6-year warranty against leakage and a 2-year warranty against defects in materials and workmanship.
Upgrade your commercial infrastructure with the heavy-duty 3-phase power of the Stiebel Eltron CESPLUS-015-208. Secure the best price or request a professional quote for your facility today at ProDryers or call 888-503-7937 for expert technical support.
Download the C Series Commercial Options List
