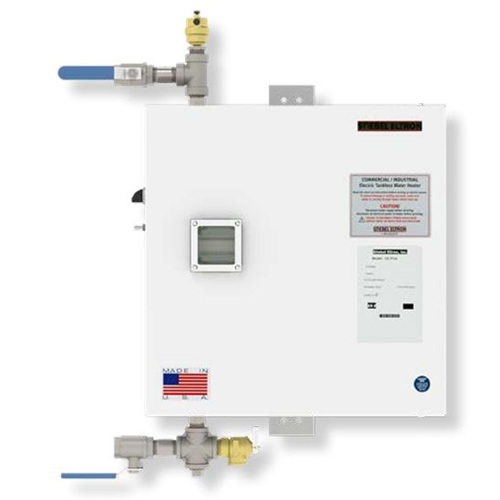

Stiebel Eltron CES Plus 12 kW (208V Delta) 3-Phase Commercial Tankless Water Heater
The Stiebel Eltron CES Plus 12 kW (208V Delta) is a precision-engineered, industrial-grade tankless solution designed for high-performance water heating in commercial environments utilizing 208V 3-phase power. As part of the prestigious CES Plus series, this model (Part Number: CESPLUS-012-208) provides an instantaneous, endless supply of hot water while maintaining a compact footprint and exceptional energy efficiency. By heating water only when needed, it eliminates the standby heat loss associated with traditional tank heaters, making it an ideal choice for point-of-use applications or light industrial processes.
Performance & Electrical Specifications
The CESPLUS-012-208 is optimized for 208V Delta electrical architectures, delivering consistent thermal performance for sanitation, food service, and laboratory requirements.
- Power Output: 11.27 kW at 208V.
- Amperage: 31.27 Amps.
- Breaker Requirement: 35A (3-Pole).
- Temperature Rise Capability:
- 77°F rise at 1 gpm.
- 39°F rise at 2 gpm.
- 26°F rise at 3 gpm.
- 19°F rise at 4 gpm.
- Activation Rate: Operates with a minimum flow rate of just 0.7 gpm (2.7 l/m), ensuring activation even with high-efficiency, low-flow fixtures.
- Maximum Flow Rate: Capable of handling facility demands up to 10.6 gpm at 60 psi.
Advanced Engineering & Reliability
- 316L Stainless Steel Heat Exchanger: Constructed with a high-grade 316L stainless steel heat exchanger to ensure maximum durability and resistance to corrosive water conditions.
- Precision Temperature Control: Features an adjustable temperature range from 60°F to 90°F (16°C to 32°C), with granular increments of 1°F (1°C) for exacting process requirements.
- Robust Enclosure Protection: The unit comes standard with a NEMA 3 enclosure. For more demanding environments, optional NEMA 4 and NEMA 4X (Stainless Steel) enclosures are available to protect against wash-down or corrosive atmospheres.
- Industrial Pressure Rating: Designed to operate reliably within a pressure range of 4 to 145 psi (0.28 to 10 bar).
Safety & Quality Compliance
- Safety Certifications: ETL Listed and certified to ANSI/UL Std. 499; conforms to CAN/CSA Std. C22.2 No. 88.
- Made in the USA: Proudly manufactured in the United States to ensure the highest standards of quality control and material sourcing.
- Industrial Warranty: Backed by a 6-year warranty against leakage and a 2-year warranty against defects in workmanship and materials.
Upgrade your commercial facility with the reliable, 3-phase power of the Stiebel Eltron CESPLUS-012-208. Secure the best price or request a professional volume quote today at ProDryers or call 888-503-7937 for expert technical guidance.
