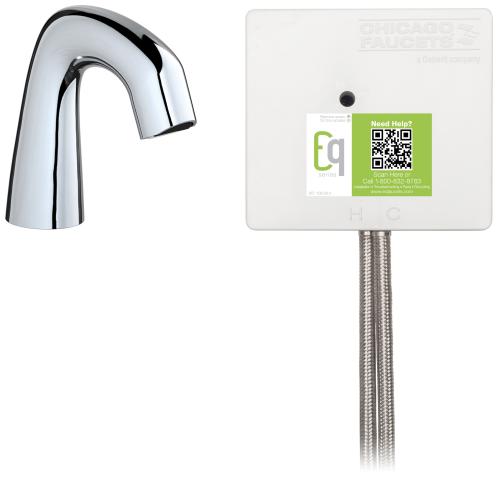

Chicago Faucets EQ-A11A-22ABCP Touch Free Electronic Faucet

The Chicago Faucets EQ-A11A-22ABCP is a commercial-grade touchless electronic faucet kit designed to deliver maximum energy independence and reliable temperature blending in high-use public washrooms. Featuring a modern, heavy-duty solid brass EQ Curved Spout with a polished chrome finish, this premium deck-mounted fixture matches upscale commercial and institutional aesthetics. Engineered for dual-supply plumbing systems, the included under-sink control box assembly comes equipped with an integrated concealed mechanical mixing valve. This internal mechanism allows maintenance technicians to manually blend separate incoming hot and cold water supplies to a precise, safe handwashing temperature directly beneath the basin deck, fully protected from unauthorized user tampering.

This advanced kit features a built-in Self-Sustaining Power System (SSPS) that utilizes an internal micro-turbine to harvest kinetic energy from the water flow during active user cycles. In typical commercial traffic environments, the turbine module generates and stores enough electrical power to provide 10+ years of autonomous operation, completely eliminating the recurring maintenance labor costs of battery replacements and the need for expensive structural AC wiring. It features a water-saving, pressure-compensating 0.5 GPM non-aerating spray outlet and operates reliably at static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.

Features:

• EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
• Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
• SSPS power cell kit for EQ® Series electronic faucets (243.154.00.1)
• EQ® control box assembly with mechanical mixing valve (EQ-A-22KJKABNF)
• Concealed mechanical mixing valve included
• Single-hole
• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Self Sustaining Power System - water turbine generates the necessary power with flow rates 0.5 GPM (1.9 L/min) or greater to operate the faucet for 10+ years
• Dual supply for hot and cold water; flexible supply hoses included
• Polished chrome

Warranty:

• Lifetime Limited Faucet Warranty
• 1-Year Limited Finish Warranty
• 5-Year Limited Mechanical Warranty
• 3-Year Limited Electronics and Solenoid Warranty

Spec Sheet
Installation Instructions
Self Sustaining Power System Brochure
