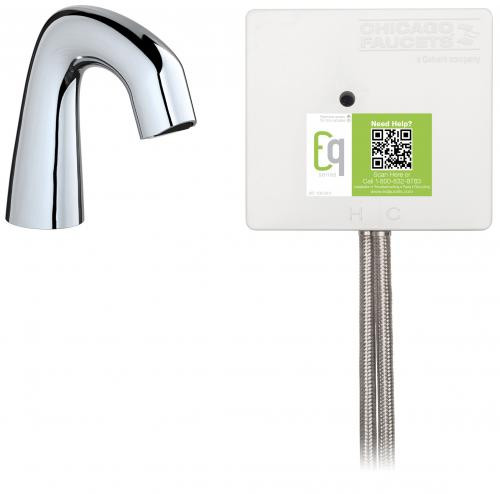

Chicago Faucets EQ-A11A-32ABCPT Touch Free Faucet with Bluetooth Communication
The Chicago Faucets EQ-A11A-32ABCPT is a commercial-grade touchless electronic faucet kit engineered to deliver continuous power and smart wireless management to high-use public washrooms. Featuring a modern, heavy-duty solid brass EQ Curved Spout in a polished chrome finish, this architectural deck-mounted fixture combines aesthetic elegance with long-term durability. Designed for dual-supply plumbing connections, the package includes an advanced under-sink control box with an integrated concealed mechanical mixing valve. This internal mechanism allows maintenance technicians to manually blend incoming hot and cold water supplies to a comfortable target temperature directly beneath the deck, fully protected from unauthorized public user tampering.
Outfitted with a factory-installed Bluetooth communication module, this "T" suffix model allows facility engineers to manage, diagnose, and program individual faucets wirelessly through a smartphone or tablet via the Chicago Faucets CF Connect App. The digital dashboard enables quick sensor range adjustments, maximum run time configurations, and automated hygiene flush cycles to maintain line cleanliness. AC powered via a plug-in 120 VAC to 6 VDC transformer, the system provides reliable, continuous operation without the recurring maintenance labor costs of battery replacements. It delivers a water-conserving, pressure-compensating 0.5 GPM non-aerating spray while functioning reliably across static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.
Features:
- EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
- Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
- Wall-mounted plug-in transformer for EQ®, ELR, and EVR Series electronic faucets (EQ-003JKNF)
- EQ Control Box Assembly with Mixing Valve (EQ-32KJKABNFT)
- Concealed mechanical mixing valve included
- Single-hole
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Includes plug-in AC transformer
- Dual supply for hot and cold water; flexible supply hoses included
- Polished chrome
Warranty:
- Lifetime Limited Faucet Warranty
- 1-Year Limited Finish Warranty
- 5-Year Limited Mechanical Warranty
- 3-Year Limited Electronics and Solenoid Warranty
