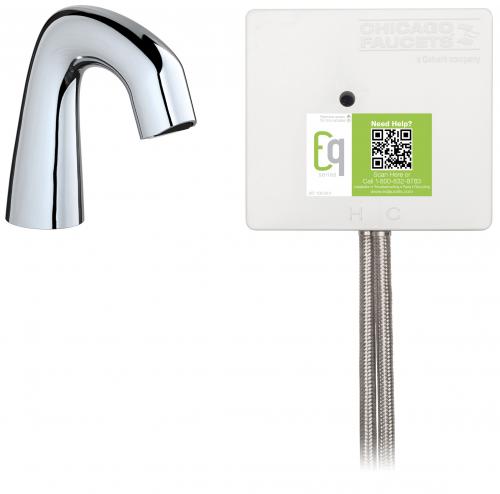

Chicago Faucets EQ-A11A-33ABCPT Touch Free Faucet with Bluetooth Communication
The Chicago Faucets EQ-A11A-33ABCPT is a commercial-grade touchless electronic faucet kit engineered to deliver continuous power, smart wireless management, and advanced anti-scald protection to high-traffic commercial washrooms. Constructed from heavy-duty solid brass with a polished chrome finish, the architectural EQ Curved Spout provides an elegant, easy-to-clean design suitable for upscale public restrooms. Built for dual-supply plumbing systems, the included under-sink control box assembly comes equipped with an integrated concealed thermostatic mixing valve (TMV) certified to ASSE 1070 standards. The internal TMV automatically blends hot and cold water supplies beneath the deck, actively responding to line pressure or thermal drops to maintain a safe, pre-set temperature and eliminate user scalding risks.
Outfitted with a factory-installed Bluetooth communication module, this "T" suffix model allows facility engineers to manage, diagnose, and program individual fixtures wirelessly through a smartphone or tablet via the Chicago Faucets CF Connect App. The digital dashboard enables quick sensor range adjustments, maximum run time configurations, and automated hygiene flush cycles to clear stagnant lines. AC powered via a plug-in 120 VAC to 6 VDC transformer, the system ensures reliable, continuous operation without the recurring maintenance labor costs or down time associated with battery changes. It delivers a water-conserving, pressure-compensating 0.5 GPM non-aerating spray while operating efficiently at static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.
Features:
- EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
- Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
- Wall-mounted plug-in transformer for EQ®, ELR, and EVR Series electronic faucets (EQ-003JKNF)
- EQ® Control Box Assembly with Mixing Valve (EQ-33KJKABNFT)
- Concealed thermostatic mixing valve included
- Single-hole
- Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Includes plug-in AC transformer
- Dual supply for hot and cold water; flexible supply hoses included
- Polished chrome
Warranty:
- Lifetime Limited Faucet Warranty
- 1-Year Limited Finish Warranty
- 5-Year Limited Mechanical Warranty
- 3-Year Limited Electronics and Solenoid Warranty
