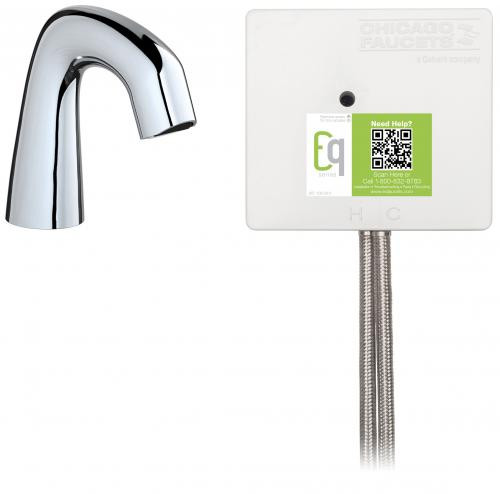

Chicago Faucets EQ-A11A-53ABCPT Touch Free Electronic Faucet
The Chicago Faucets EQ-A11A-53ABCPT is a commercial-grade touchless electronic faucet kit built to deliver heavy-duty performance and anti-scald protection to commercial and institutional restrooms. Constructed with a heavy-duty solid brass EQ Curved Spout in a polished chrome finish, this architectural deck-mounted fixture brings minimalist styling and rugged durability to high-traffic areas. Designed for dual-supply plumbing connections, the package includes an advanced under-sink control box with an integrated concealed thermostatic mixing valve (TMV). The internal TMV is certified to strict ASSE 1070 requirements, automatically blending incoming hot and cold lines to maintain a safe, pre-set temperature regardless of line pressure fluctuations.
Outfitted with a factory-integrated Bluetooth communication module, this "T" suffix model allows maintenance teams to configure, troubleshoot, and monitor the fixture wirelessly using a smartphone or tablet via the Chicago Faucets CF Connect App. This smart application provides easy access to sensor range calibrations, automated hygiene flush scheduling, and maximum run time adjustments. Hardwired via a direct 120 VAC connection with spade terminals, this power configuration provides permanent power to up to 6 EQ faucets from a single supply line, eliminating the recurring labor overhead of routine battery replacements. It delivers a water-saving, pressure-compensating 0.5 GPM non-aerating spray while functioning efficiently at static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.
Features:
- EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
- Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
- Hard-wire transformer for up to 6 EQ®, ELR, and EVR Series electronic faucets, wall or junction box mounting (EQ-005JKNF)
- EQ® control box assembly with mixing valve (EQ-53KJKABNFT)
- Concealed thermostatic mixing valve included
- Single-hole
- Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Includes hard-wired AC transformer
- Dual supply for hot and cold water; flexible supply hoses included
- Polished chrome
Warranty:
- Lifetime Limited Faucet Warranty
- 1-Year Limited Finish Warranty
- 5-Year Limited Mechanical Warranty
- 3-Year Limited Electronics and Solenoid Warranty
