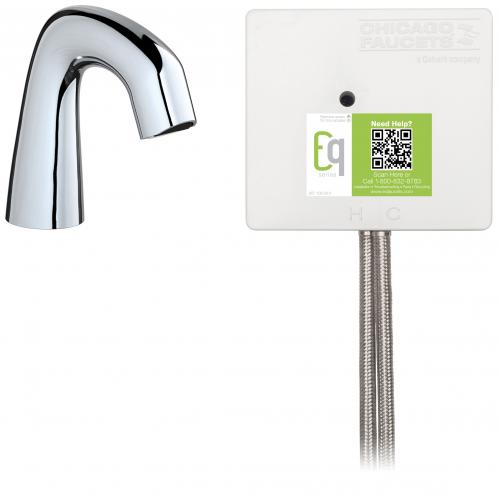

Chicago Faucets EQ-A11A-12ABCPT Touch Free Faucet with Bluetooth Communication
The Chicago Faucets EQ-A11A-12ABCPT is a commercial-grade touchless electronic faucet kit that provides a complete smart handwashing solution for public, corporate, and healthcare restrooms. This heavy-duty, solid brass architectural fixture features a striking EQ Curved Spout in a brilliant polished chrome finish. Engineered for dual-supply plumbing connections, the package includes a premium under-sink control box assembly with an integrated concealed mechanical mixing valve. This internal mechanism allows maintenance technicians to blend incoming hot and cold water supplies to a comfortable temperature directly beneath the basin deck, securely out of reach from user tampering.
Outfitted with a factory-installed Bluetooth communication module, this "T" suffix model allows facility engineers to manage, diagnose, and adjust individual faucets wirelessly through a smartphone or tablet via the Chicago Faucets CF Connect App. The digital dashboard enables quick sensor range adjustments, maximum run time configurations, and automated hygiene flush cycles to ensure line cleanliness. Operating independently on a self-contained battery power pack (4 AA alkaline batteries), it delivers a water-conserving, pressure-compensating 0.5 GPM non-aerating spray while functioning reliably across static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.
Features:
- EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
- Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
- EQ® Control Box Assembly Concealed Mechanical Mixing Valve (EQ-12KJKABNFT)
- Concealed mechanical mixing valve included
- Single-hole
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Powered by 6 'AA' batteries (included)
- Dual supply for hot and cold water; flexible supply hoses included
- Polished chrome
Warranty:
- Lifetime Limited Faucet Warranty
- 1-Year Limited Finish Warranty
- 5-Year Limited Mechanical Warranty
- 3-Year Limited Electronics and Solenoid Warranty
