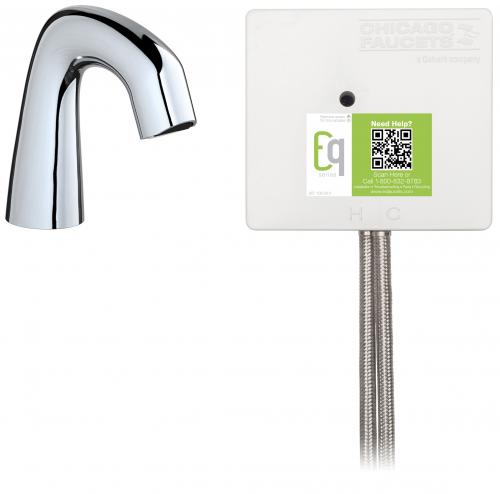

Chicago Faucets EQ-A11A-63ABCPT Touch Free Electronic Faucet with Bluetooth Communication

The Chicago Faucets EQ-A11A-63ABCPT is an advanced commercial touchless electronic faucet system engineered to integrate complete power independence, anti-scald user protection, and intelligent wireless configuration. Constructed from low-lead ECAST® solid cast brass with a polished chrome finish, this architectural EQ Curved Spout ensures maximum durability and easy cleaning in heavy-use corporate, healthcare, and educational restrooms. Designed for dual-supply plumbing systems, the included under-sink control box features an integrated concealed thermostatic mixing valve (TMV) certified to strict ASSE 1070 standards. This internal valve automatically adjusts to incoming hot and cold water fluctuations, actively maintaining a stable, pre-set temperature to protect public users from accidental scalding.

Outfitted with a factory-installed Bluetooth communication module, this "T" suffix model allows maintenance technicians to wirelessly monitor, program, and audit the fixture through a smartphone or tablet using the Chicago Faucets CF Connect App. The software dashboard provides instant access to infrared sensor range calibrations, maximum run time windows, and scheduled automatic hygiene flushes to combat water stagnation. This high-efficiency kit is driven by a built-in Long Term Power System (LTPS) utilizing a specialized long-life lithium power cell pack. The LTPS configuration is engineered to deliver 15+ years of maintenance-free operation, entirely removing the continuous labor overhead of routine battery replacements without requiring any structural AC line hardwiring. It operates with a water-saving, pressure-compensating 0.5 GPM non-aerating spray and functions reliably across static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.

Features:

• EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
• Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
• EQ® Series long life battery pack with adapter cable (243.869.00.1)
• EQ Control Box Assembly with Concealed Thermostatic Mixing Valve (EQ-63KJKABNFT)
• Concealed thermostatic mixing valve included
• Single-hole
• Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Long Term Power System (LTPS) provides maintenance-free power for 15 years or more, depending on usage
• Dual supply for hot and cold water; flexible supply hoses included
• Polished chrome

Warranty:

• Lifetime Limited Faucet Warranty
• 1-Year Limited Finish Warranty
• 5-Year Limited Mechanical Warranty
• 3-Year Limited Electronics and Solenoid Warranty
