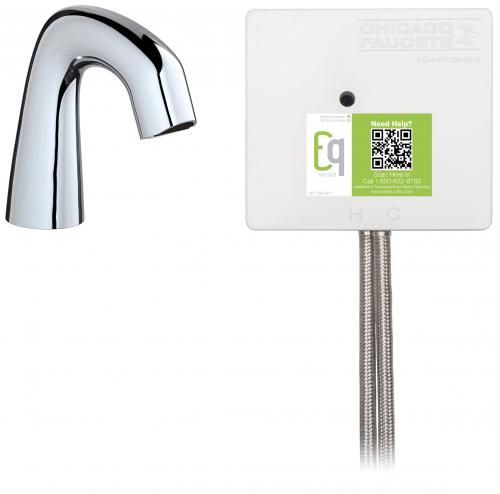

Chicago Faucets EQ-A11A-62ABCP Touch Free Electronic Faucet

The Chicago Faucets EQ-A11A-62ABCP is a commercial-grade touchless electronic faucet system built to supply exceptional energy independence and flexible temperature blending in high-traffic public washrooms. Featuring a heavy-duty, solid cast brass EQ Curved Spout in a brilliant polished chrome finish, this deck-mounted architectural fixture combines minimalist aesthetic appeal with long-term commercial durability. Designed for dual-supply plumbing connections, the package includes an advanced under-sink control box assembly with an integrated concealed mechanical mixing valve. This internal mechanism allows maintenance technicians to blend incoming hot and cold water lines to a safe, comfortable temperature directly beneath the basin deck, fully protected from unauthorized user tampering.

This high-performance kit features a built-in Long Term Power System (LTPS), utilizing a specialized long-life lithium-ion power cell pack. The LTPS configuration is engineered to deliver 15+ years of maintenance-free operation under typical commercial usage conditions, entirely removing the continuous labor costs of standard battery replacements without requiring any structural AC electrical line hardwiring during installation. It dispenses water through a water-saving, pressure-compensating 0.5 GPM non-aerating spray outlet to maximize building water conservation while running efficiently at static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.

Features:

• EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
• Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
• EQ® Series long life battery pack with adapter cable (243.869.00.1)
• EQ® control box assembly concealed mechanical mixing valve (EQ-62KJKABNF)
• Concealed mechanical mixing valve included
• Single-hole
• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Long Term Power System (LTPS) provides maintenance-free power for 15 years or more, depending on usage
• Dual supply for hot and cold water; flexible supply hoses included
• Polished chrome

Warranty:

• Lifetime Limited Faucet Warranty
• 1-Year Limited Finish Warranty
• 5-Year Limited Mechanical Warranty
• 3-Year Limited Electronics and Solenoid Warranty

Spec Sheet
Installation Instructions
Long Term Power System Brochure
