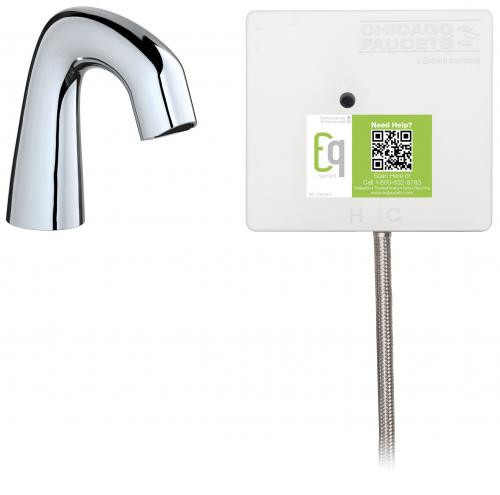

Chicago Faucets EQ-A11A-21ABCP Touch Free Electronic Faucet

The Chicago Faucets EQ-A11A-21ABCP is an eco-friendly commercial touchless electronic faucet designed to minimize facility maintenance while maximizing water efficiency. This high-performance fixture features a solid, cast brass EQ Curved Spout polished in a sleek chrome finish, making it a perfect fit for modern commercial washrooms. Engineered for single-supply plumbing systems, the included under-sink control box assembly is built specifically for pre-mixed water service, taking in a single pre-tempered water line directly from a centralized master thermostatic mixing valve upstream.

This advanced kit features an integrated Self-Sustaining Power System (SSPS), utilizing a built-in micro-turbine to harvest kinetic energy from the water flow during active use cycles. When operated under standard conditions, the SSPS generates and stores sufficient electrical energy to provide 10+ years of continuous, autonomous operation, entirely eliminating the labor overhead of routine battery replacements and removing the need for costly AC line hardwiring. The system operates with a water-conserving, pressure-compensating 0.5 GPM non-aerating spray and functions reliably across static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.

Features:

• EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
• Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
• SSPS power cell kit for EQ® Series electronic faucets (243.154.00.1)
• EQ® control box assembly for pre-mixed water (EQ-A-21KJKABNF)
• Single-hole
• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Self Sustaining Power System - water turbine generates the necessary power with flow rates 0.5 GPM (1.9 L/min) or greater to operate the faucet for 10+ years
• Single supply for tempered water; flexible supply hose included
• Polished chrome

Warranty:

• Lifetime Limited Faucet Warranty
• 1-Year Limited Finish Warranty
• 5-Year Limited Mechanical Warranty
• 3-Year Limited Electronics and Solenoid Warranty

Spec Sheet
Installation Instructions
Self Sustaining Power System Brochure
