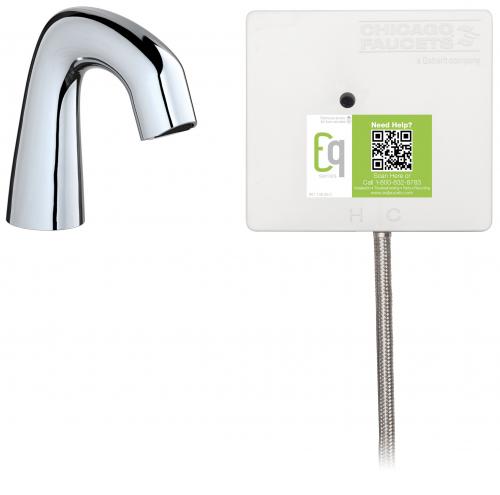

Chicago Faucets EQ-A11A-11ABCPT Touch Free Faucet with Bluetooth Communication
The Chicago Faucets EQ-A11A-11ABCPT is a commercial-grade touchless electronic faucet system that combines modern design with smart facility management tools. Featuring a heavy-duty, cast brass EQ Curved Spout with a highly polished chrome finish, this architectural fixture enhances public, corporate, and healthcare restroom environments. This complete kit includes both the hands-free spout and a single-supply control box assembly, making it optimized for pre-mixed water systems where tempered water is delivered through a single under-sink pipeline from a centralized master mixing valve.
Equipped with a factory-integrated Bluetooth communication module, this "T" suffix model allows maintenance staff to wirelessly connect to individual faucets via a smartphone or tablet using the Chicago Faucets CF Connect App. From the digital app, technicians can quickly review operational diagnostics, adjust the infrared sensor's detection range, set maximum run times, and schedule automated hygiene flushes to maintain facility water quality. Driven by an independent, self-contained battery power pack (4 AA cell configuration), the system installs cleanly without expensive AC electrical line routing. It delivers a water-saving, pressure-compensating 0.5 GPM non-aerating spray to maximize LEED credits while operating reliably at static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.
Features:
- EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
- Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
- EQ® Control Box Assembly for Pre-mixed water (EQ-11KJKABNFT)
- Single-hole
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Powered by 6 'AA' batteries (included)
- Single supply for tempered water; flexible supply hose included
- Polished chrome
Warranty:
- Lifetime Limited Faucet Warranty
- 1-Year Limited Finish Warranty
- 5-Year Limited Mechanical Warranty
- 3-Year Limited Electronics and Solenoid Warranty
