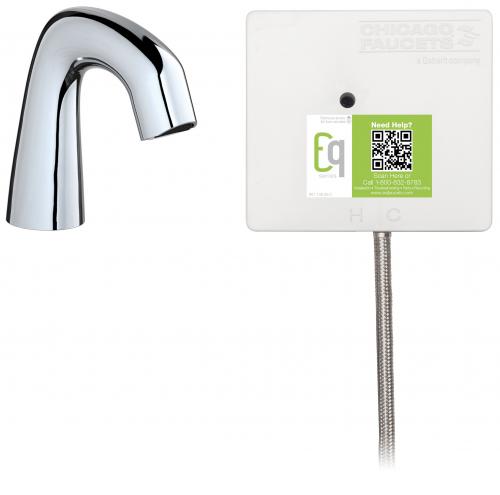

Chicago Faucets EQ-A11A-61ABCPT Touch Free Electronic Faucet with Bluetooth Communication

The Chicago Faucets EQ-A11A-61ABCPT is a commercial-grade touchless electronic faucet system engineered to provide a highly smart, near-zero-maintenance solution for high-traffic corporate, healthcare, and public restrooms. Built with a robust solid cast brass EQ Curved Spout in a brilliant polished chrome finish, this architectural deck-mounted fixture combines minimalist styling with reliable durability. Designed for single-supply plumbing setups, the package includes an under-sink control box assembly configured strictly for pre-mixed water service, taking in a single pre-tempered water line coming directly from a centralized master mixing valve upstream.

Outfitted with a factory-installed Bluetooth communication module, this "T" suffix model allows maintenance crews to wirelessly configure, manage, and audit individual fixtures via a smartphone or tablet using the Chicago Faucets CF Connect App. Through this digital dashboard, technicians can calibrate infrared sensor range zones, adjust maximum run times, and schedule automated hygiene flush cycles to keep supply lines clean. This high-efficiency kit is powered by an integrated Long Term Power System (LTPS), utilizing a specialized lithium-ion long-life power cell. The LTPS module is engineered to deliver 15+ years of maintenance-free operation, entirely removing the continuous labor costs of standard battery replacements without the need for installing complex AC electrical line hardwiring under the sink basin. It features a water-saving, pressure-compensating 0.5 GPM non-aerating spray and operates reliably at static pressures between 20 and 125 PSI. Call us at 888-503-7937 with questions or for quotes on bulk pricing. We are an authorized, well-trusted Chicago Faucets supplier.

Features:

• EQ® Curved spout, polished chrome, 0.5 GPM (EQ-A11A-KJKABCP)
• Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM (243.145.AB.1)
• EQ® Series long life battery pack with adapter cable (243.869.00.1)
• EQ® Control Box Assembly for Pre-Mixed Water (EQ-61KJKABNFT)
• Single-hole
• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Long Term Power System (LTPS) provides maintenance-free power for 15 years or more, depending on usage
• Single supply for tempered water; flexible supply hose included
• Polished chrome

Warranty:

• Lifetime Limited Faucet Warranty
• 1-Year Limited Finish Warranty
• 5-Year Limited Mechanical Warranty
• 3-Year Limited Electronics and Solenoid Warranty
