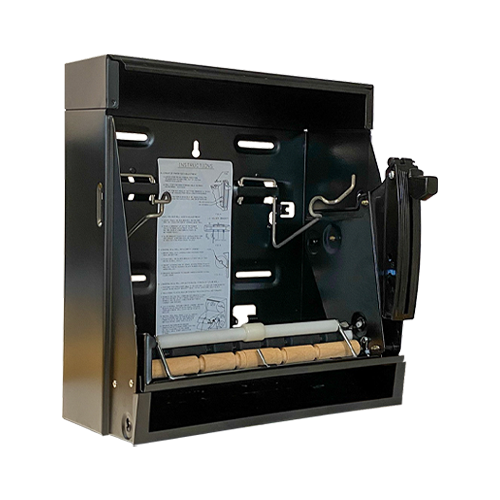

ASI 8370 Manual Lever Roll Towel Dispenser Mechanism
The ASI 8370 is the dispensing mechanism for compatible ASI manual-lever paper towel dispenser cabinets; it is not a complete dispenser cabinet. It is a practical choice when the cabinet can remain in service but the internal roll-feed mechanism needs to be installed or replaced.
Capacity and Operation
- Accepts one 8- or 9-inch-wide standard towel roll up to 8 inches in diameter and 800 feet long
- Also holds one 8- or 9-inch-wide stub roll up to 4 inches in diameter
- Lever drive dispenses one of three owner-selected towel lengths
- Supports automatic transfer from the stub roll to a newly loaded full roll
- Baked-enamel steel housing and base plate with plated steel, plastic, rubber, wood, and stainless steel internal components
Compatibility and Installation
This mechanism is designed for ASI lever-operated paper towel dispenser cabinets. Confirm cabinet compatibility before ordering. It mounts to the cabinet back plate with the supplied 1/4-20 x 3/8-inch screws. The permanently affixed internal label provides paper-loading, length-setting, and stub-roll transfer instructions.
