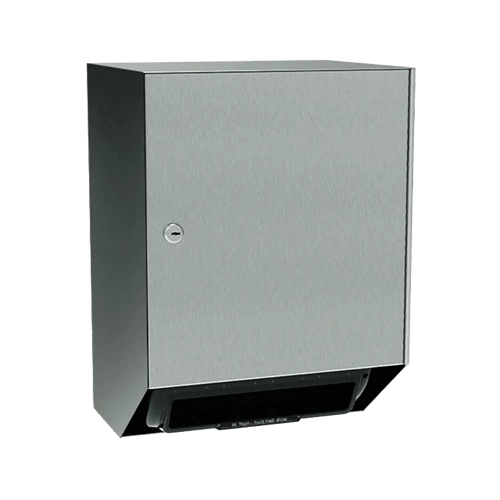

ASI 8523A Automatic Roll Towel Dispenser
This surface-mounted, proximity-sensing dispenser feeds a preset towel length from standard 8" or 9" wide rolls up to 800 ft. The owner adjusts the paper-feed length. Stub-roll capability allows dispensing to continue when a new full roll is loaded and the remaining partial roll is moved to the stub-roll position.
The cabinet is Type 304 stainless steel with a satin finish. It operates on four D-size batteries, which are not included; batteries and paper are replenished manually as maintenance requires. An LED indicates sensing and battery condition, and the locking door helps prevent unauthorized access and roll removal.
Installation
Mount on the surface of the wall. In drywall construction, provide adequate in-wall reinforcement; anchors or other suitable fasteners for other wall conditions are by others. The unit measures 13" W x 17-3/4" H x 10-1/2" D.
