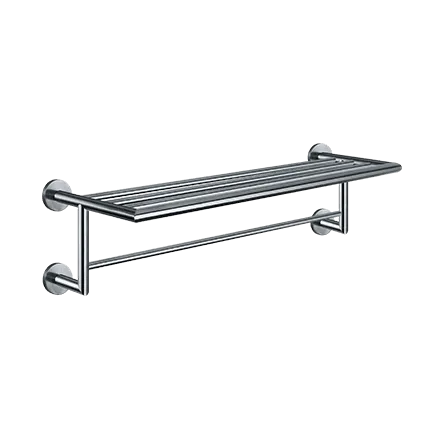

ASI 7383 Stainless Steel Towel Shelf with Hanger Rod
The ASI 7383 is a surface-mounted towel shelf with a hanger rod for hospitality and restroom use. Its open spaces between the tubes reduce weight and facilitate towel drying.
Key specifications
- Type 304 stainless steel tubing with a satin finish; 19-gauge tubing measures 3/4" in diameter.
- Overall dimensions: 23-3/4" W x 4-1/2" H x 9-7/8" projection.
- Supports up to 35.3 lbs (16 kg) total weight of towels and items hung on the rod when properly installed.
- A stainless steel setscrew at the bottom perimeter of each flange locks the unit to its mounting plate.
For surface mounting, use the eight supplied #6 x 1-3/8" self-threading screws through the mounting plates into the supplied anchors in suitably prepared walls; other suitable mounting hardware may be used to suit wall conditions. In wet areas, waterproof screw penetrations through tile. Tighten the setscrews with the supplied hex key. For general utility, the manufacturer recommends mounting the top rim of the shelf 55" to 65" above the floor.
