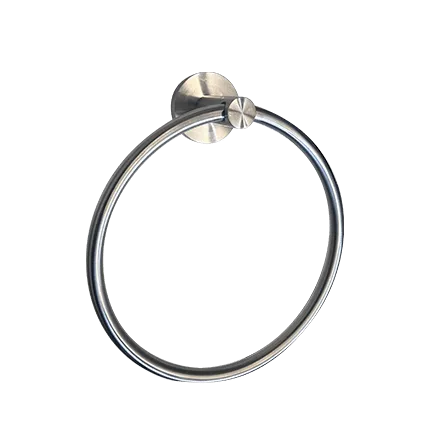

ASI 7306 Stainless Steel Towel Ring
The ASI 7306 is a surface-mounted towel ring for hand or bath towels. Its 7-inch ring is formed from satin-finish Type 304 stainless steel and projects 2-1/2 inches from the wall.
Specifications and installation
- 7-inch-diameter ring made from 3/8-inch-diameter stainless steel tube.
- 1-15/16-inch-diameter mounting flange; 2-1/2-inch projection.
- 22-gauge post and 18-gauge bracket; satin finish.
- The ring swings in silencer bushings for hanging or retrieving a towel; spring tension holds it captive in the bushings.
- Surface-mount to a finished wall or door. The manufacturer specifies two supplied screws and plastic wall anchors, or other suitable hardware for the wall conditions.
- For the manufacturer's 2010 ADA installation guidance, the maximum height to the top of the ring is 48 inches AFF with clear floor reach; 46 inches AFF for side reach over an obstruction with a reach depth greater than 10 inches and less than 25 inches; or 44 inches AFF for forward reach over an obstruction with a reach depth greater than 20 inches and less than 25 inches. For general utility, install with the mounting-plate centerline 50–60 inches AFF.
