ASI 7311-24B 24-Inch Surface-Mounted Towel Shelf with Towel Bar

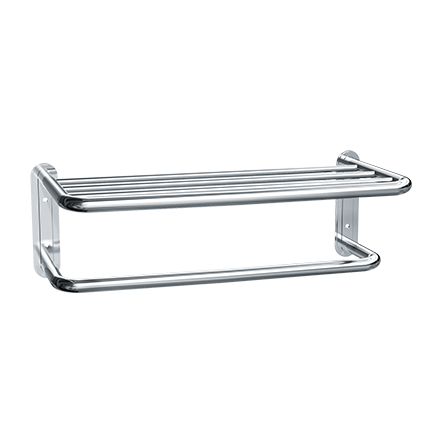

The ASI 7311-24B is the 24-inch-wide, bright-finish Type 304 stainless steel towel shelf for wall-mounted installations. Its 3/4-inch (19 mm) drying rod and 3/8-inch (10 mm) cross tubes distinguish the shelf-and-bar configuration; the manufacturer also offers a 20-inch 7311-20B when a shorter shelf is needed.
Verified specifications
- Width: 24 inches (610 mm); overall height: 6-1/2 inches (165 mm).
- Wall projection: 8 inches (203 mm).
- Construction and finish: Type 304 stainless steel, bright finish.
- Surface-mounted design with a 3/4-inch (19 mm) diameter drying rod and 3/8-inch (10 mm) diameter cross tubes.
Installation and care
Mount through the countersunk holes in the wall plate using #8 self-threading flat- or oval-head screws. Screws and suitable prepared mountings or other mounting hardware are by others and must suit the wall conditions. The manufacturer’s installation guidance for the referenced accessibility standards specifies a maximum top-of-shelf height of 48 inches (1219 mm) above finished floor for clear forward or side reach; 46 inches (1168 mm) for side reach over an obstruction with reach depth greater than 10 inches (254 mm) and less than 25 inches (635 mm); or 44 inches (1118 mm) for forward reach over an obstruction with reach depth greater than 20 inches (508 mm) and less than 25 inches (635 mm). For general utility, the manufacturer specifies a maximum top-of-shelf height of 68 inches (1727 mm) above finished floor.
For routine cleaning, use a soft cloth with mild detergent, then a water-dampened cloth and a dry cloth. Avoid muriatic acid, caustic or abrasive materials, and harsh detergents outside pH 7 ± 1.5 to help prevent discoloration.
