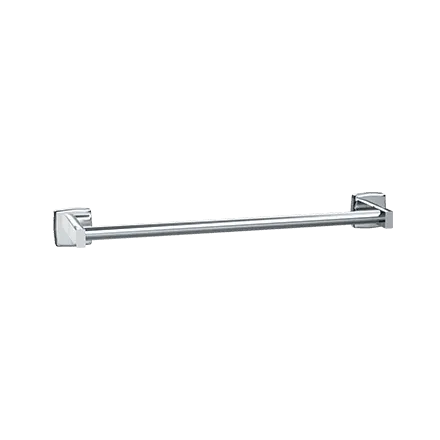

ASI 7355-24S Satin-Finish Round Surface-Mounted Towel Bar
The ASI 7355-24S is a 24-inch round towel bar with a Type 304 stainless steel construction and satin finish. It projects 3-1/4 inches (83 mm) from the wall.
Specifications
- Rod diameter: 3/4 inch (19 mm); length: 24 inches (610 mm).
- Stainless steel towel bar and mounting bracket; Type 304 stainless steel, satin finish.
- Surface mounted; wall projection: 3-1/4 inches (83 mm).
- The 7355-S series is also available in 18-inch (457 mm) and 30-inch (762 mm) lengths.
- Manufacturer-stated warranty: one year from invoice date.
Installation guidance
Mount the plates to the wall with #10 self-threading screws through the provided holes, into suitable prepared mountings or other suitable hardware selected for the wall conditions; screws and mounting hardware are by others. Hang the post and flange assemblies on the plates with the bar captured, then tighten the setscrews.
For general utility, ASI recommends setting the mounting-plate centerline at 55 inches (1397 mm) above finished floor (AFF). The manufacturer’s accessibility installation guidance gives a maximum towel-rod-top height of 48 inches (1219 mm) AFF for clear forward or side reach; 46 inches (1168 mm) for side reach over an obstruction more than 10 inches (254 mm) and less than 25 inches (635 mm) deep; or 44 inches (1118 mm) for forward reach over an obstruction more than 20 inches (508 mm) and less than 25 inches (635 mm) deep. Confirm the applicable requirements and site conditions for the installation.
