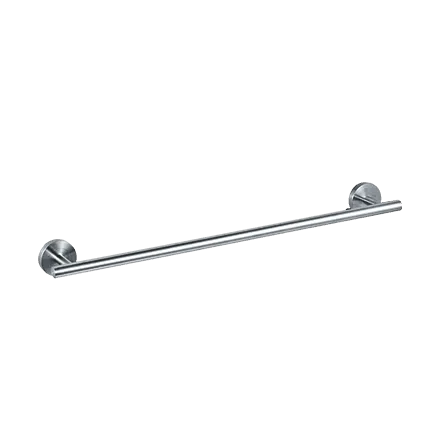

ASI 7307-24 Round Towel Bar, 24-Inch
This surface-mounted towel bar has a 24-inch (610 mm) Type 304 stainless steel tube and posts with a satin finish and round mounting brackets at the ends. The 5/8-inch (16 mm) diameter bar projects 2-5/8 inches (67 mm) from the wall. The manufacturer specifies 20-gauge tubing, 22-gauge posts, and 19-gauge mounting cups.
Mount the unit to a finished wall or door using the four supplied #6 x 1-1/2-inch self-threading pan-head screws and supplied plastic wall anchors, or use other suitable mounting hardware selected for the wall conditions. Clip the flanges onto the mounting cups and tighten the supplied set screws; one 2.5 mm hex key is provided. The manufacturer gives installation-height guidance for ADA accessibility and general utility; confirm the applicable placement for the project.
