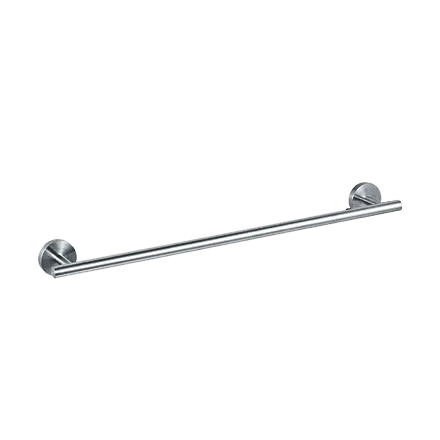

ASI 7307-18 Round Towel Bar, Surface Mounted, 18-Inch
The ASI 7307-18 is an 18-inch, surface-mounted round towel bar for finished walls or doors. It is made of satin-finish Type 304 stainless steel and projects 2-5/8 inches from the mounting surface.
Specifications and installation
- 18 inches long, with a 5/8-inch-diameter bar and 2-5/8-inch projection.
- Type 304 stainless steel with a satin finish; the towel bar is 20 gauge, the posts 22 gauge, and the mounting cups 19 gauge.
- Round mounting brackets are at both ends; the posts clip onto the mounting cups and lock with supplied set screws.
- Surface mount using the four supplied #6 x 1-1/2-inch screws and supplied plastic anchors, or suitable hardware selected for the wall conditions.
- ASI supplies a hex key for tightening the set screws.
For general utility, ASI recommends positioning the mounting-cup centerline 55 inches above the finished floor. ASI's installation sheet also provides placement guidance for 2010 ADA Accessibility Standards, with maximum top-of-rod heights depending on the available reach and any obstruction; verify the applicable installation requirements for the project.
