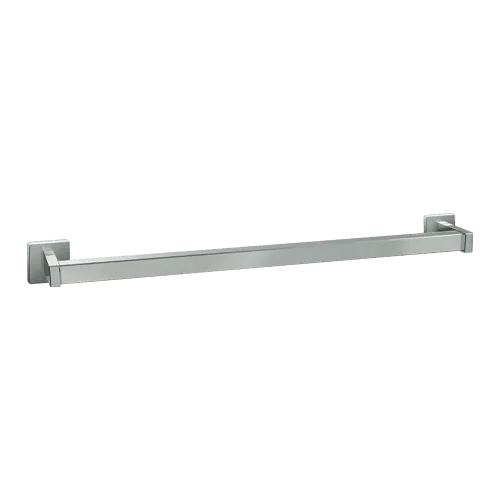

ASI 7360-24B Square Surface-Mounted Towel Bar
The ASI 7360-24B is a 24-inch square towel bar for wall mounting, made of Type 304 stainless steel with a bright finish. It projects 3-1/4 inches from the wall.
Specifications and options
- 24-inch (610 mm) bar length; 3/4-inch (19 mm) square bar.
- Type 304 stainless steel with bright finish (-B); satin finish is the -S option.
- Available in 18-inch, 24-inch, and 30-inch lengths.
- Surface-mounted; mounting plates and suitable wall mountings or hardware are required.
For installation, the manufacturer specifies #10 self-threading screws through the mounting plates into suitable prepared mountings, or other suitable hardware for the wall conditions; screws and hardware are by others. Hang the post and flange assemblies over the plates with the bar captured, then tighten the setscrews. The manufacturer gives installation-height guidance for accessibility based on the reach and obstruction conditions at the location; verify the applicable requirements for the project.
