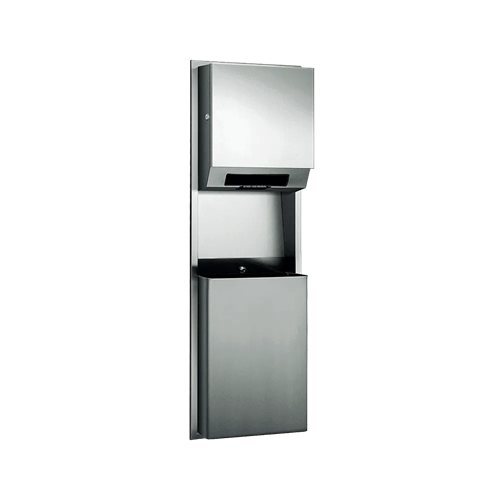

ASI 646924AC Simplicity Recessed Automatic Roll Paper Towel Dispenser and Waste Receptacle
The ASI 646924AC is a recessed, AC-powered combination unit for commercial restrooms where the wall can accommodate its rough opening. A proximity sensor dispenses a preset towel length without touch; the unit combines an 800 ft. roll capacity with a 12-gallon waste receptacle.
Product specifications
- Accepts 8-inch or 9-inch-wide roll towels up to 800 ft. long; dispensing length, delay, and economy are adjustable using three switches.
- 12 gal. (45.4 L) removable waste receptacle; internal hooks accept a reusable vinyl liner (not supplied) or disposable PVC liner bags (by others).
- 22-gauge Type 304 stainless steel cabinet, frame, and waste container with satin finish; concealed hinge and tumbler lock.
- Overall dimensions: 17-1/4 in. W x 56 in. H x 10-1/4 in. D. Minimum rough wall opening: 15-3/4 in. W x 54-1/2 in. H x 4 in. D.
- Supplied C-UL-US and CE-approved low-voltage AC adapter provides 6 VDC at 2 A. The dispenser has an LED indicator for sensing and operation.
- Manufacturer lists a one-year warranty from invoice date.
Installation and servicing
Install in the wall recess through the concealed mounting holes using #10 self-threading screws (not supplied). The manufacturer’s installation guidance calls for the top of the towel dispenser opening to be no higher than 48 in. above the finished floor for the cited accessibility standards; confirm project requirements for the installation. Provide the power connection and duplex outlet inside the cabinet as specified by the manufacturer. The supplied adapter plugs into the dispenser and that outlet.
To refill, unlock the door and replace an empty or partially used roll. When loading a new full roll, the existing partial roll can be moved to the stub-roll position so dispensing continues. Empty the waste receptacle as maintenance needs require; the receptacle retainer helps prevent unauthorized removal.
