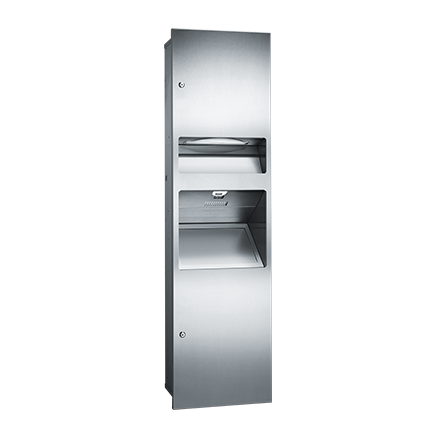

ASI 64672 Simplicity Cabinet Only for 64672-1 and 64672-2
This is the cabinet-only component for the Simplicity Collection 3-in-1 paper towel dispenser, high-speed hand dryer and waste receptacle configuration; the hand dryer is not included. The associated configuration holds 500 standard multi-fold or 400 standard C-fold towels and has a 6.8-gallon (26 L) waste capacity. The cover is durable 20-gauge Type 304 stainless steel with a satin finish.
Recessed installation
The cabinet measures 15-3/8" W x 55-3/8" H x 7-1/2" D. The required rough wall opening is 14-3/32" W x 54-3/8" H x 7-1/4" minimum depth. Mount in the wall recess using #10 self-threading screws through the concealed mounting holes; screws are by others.
