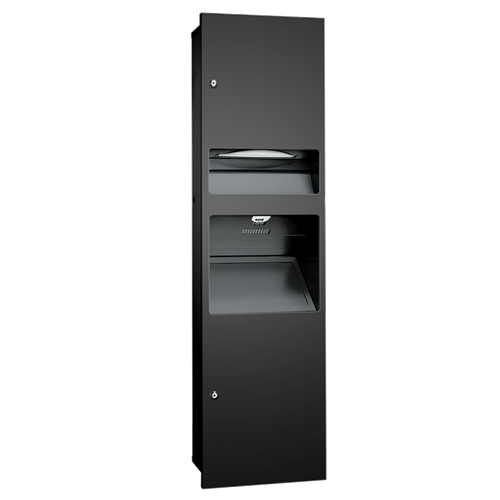

ASI 64672-41PC Simplicity Matte Black Cabinet for 3-in-1 Unit
This recessed cabinet combines a paper towel dispenser, a space for a separately purchased high-speed hand dryer, and a waste receptacle. It holds 500 standard multi-fold or 400 standard C-fold towels and has a 6.8-gallon (26 L) waste capacity. The seamless cover is Type 304 stainless steel with a matte black powder-coated finish and 20-gauge construction.
Overall dimensions are 15-3/8" W x 55-3/8" H x 7-1/2" D. The required rough wall opening is 14-3/32" W x 54-3/8" H x 7-1/4" D minimum. Confirm the recess depth and opening before ordering. Install in the wall recess using #10 [M5] self-threading screws through the concealed mounting holes; screws are by others.
The manufacturer recommends locating the top of the rough wall opening 75-1/2" above finished floor for a 60" towel-slot height. Its separate guidance for HC accessibility standards specifies a rough-opening top height of 58-13/16" above finished floor; confirm the applicable installation requirements for the project. The hand dryer is not included, and its electrical service and connection are by others. Manufacturer warranty: one year from invoice date.
