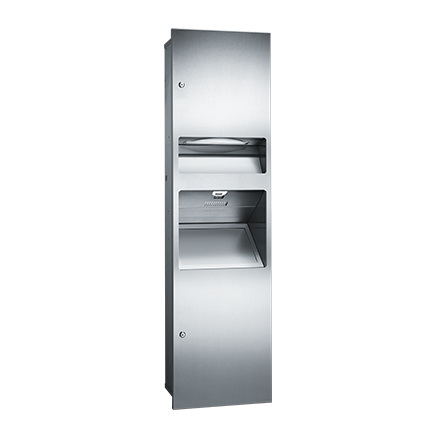

ASI 64672-2 Simplicity™ Recessed 3-in-1 Paper Towel Dispenser, High-Speed Hand Dryer and Waste Receptacle
This 208-240V recessed unit combines a high-speed hand dryer, paper-towel dispenser, and waste receptacle. It holds 500 standard multi-fold or 400 standard C-fold towels; neither towel type requires an adapter. Waste capacity is 6.8 gal (26 L). The unit is constructed of 20-gauge Type 304 stainless steel with a satin finish and measures 15-3/8" W x 55-3/8" H x 7-1/2" D.
Users manually withdraw towels through the dispensing slot. The dispenser continues to feed correctly when reloaded with a partial load. The sensor-activated dryer runs while movement is sensed, up to a maximum of two minutes, and shuts off after its time-out when hands leave the sensor zone. Replenish towels by unlocking and opening the door; empty the waste container manually. The locking full-face door secures the compartments, and the waste receptacle’s spring-hinge flap door prevents unsightly overloads.
Recess and electrical planning
Allow a minimum rough wall opening of 14-3/32" W x 54-3/8" H x 7-1/4" D. Mount with six #10 x 1-1/2" self-threading pan-head screws through the adjustable mounting tabs; screws are by others. Electrical service is supplied and connected by others before the cover is installed. For the manufacturer’s 2010 ADA Accessibility Standards guidance, install the unit so the towel-dispenser outlet centerline is no higher than 48" above finished floor.
