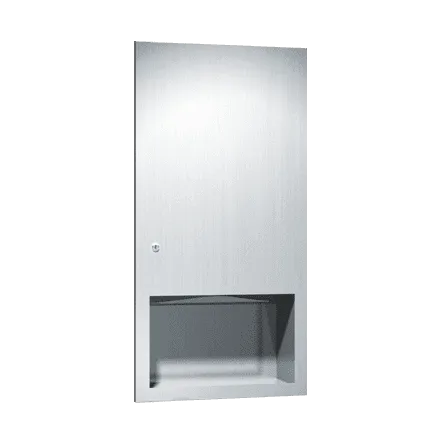

ASI 6452 Recessed Paper Towel Dispenser
This Type 304 stainless steel dispenser holds 600 C-fold or 800 multi-fold towels. A tumbler lock secures the door. Towels self-feed until depleted, and a partial load can be added in place without interrupting feeding. Exposed surfaces have a No. 4 satin finish.
Allow a minimum rough wall opening of 12-3/4" W x 26-1/2" H x 4-1/4" D. Mount through the concealed holes with #10 self-threading screws, supplied by others. For general utility, install with the bottom of the unit 42" above the finished floor. The manufacturer’s stated 2010 ADA guidance specifies a towel-slot centerline no higher than 48" above the finished floor.
