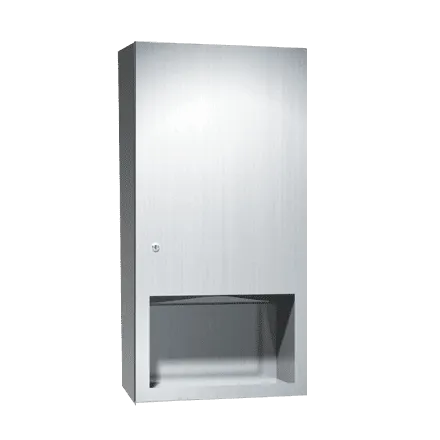

ASI 6452-9 Simplicity Surface-Mounted Paper Towel Dispenser
This manual-pull dispenser holds 600 C-fold or 800 multi-fold towels. Towels self-feed until the supply is depleted, and a partial load can be added in place without interrupting feeding. The tumbler lock holds the door closed and prevents unauthorized access or removal. The type 304 stainless steel unit has a satin finish and a 9" surface-mounting collar. Overall dimensions are 14-1/4" W x 28" H x 4-1/2" D.
Install the 9" collar on the cabinet before mounting the unit to the wall. Secure the cabinet through its concealed mounting holes using four #10 self-threading screws; screws are by others. ASI's installation guidance for 2010 ADA Accessibility Standards places the dispenser-slot centerline no higher than 48" above the finished floor. This manufacturer guidance is not a blanket compliance determination.
