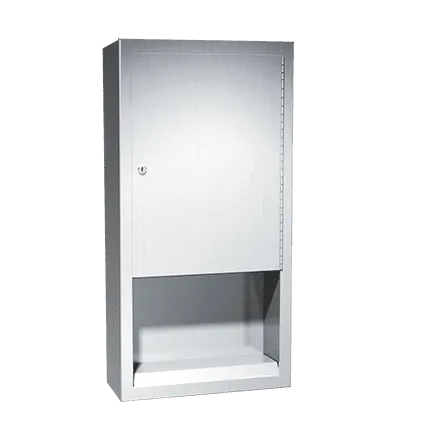

ASI 0452-9 Traditional Paper Towel Dispenser, Surface-Mounted
The ASI 0452-9 is a manual pull-type dispenser for surface mounting with a 9-inch stainless steel collar. It holds 600 C-fold or 800 multi-fold towels, and its self-feeding design continues until the supply is depleted.
Specifications
- Capacity: 600 C-fold or 800 multi-fold paper towels.
- Dimensions: 14-1/4 inches wide by 28 inches high by 4-1/4 inches deep.
- Construction: Type 304 stainless steel with a satin finish; the towel slot has a fully hemmed edge.
- Security: Tumbler lock secures the door.
- Refill: Two push-up flaps allow bottom loading. A partial load can be replenished in place while maintaining proper feeding.
Installation
Install the collar on the cabinet before wall mounting, following the collar data sheet. Mount through the concealed holes using #10 self-threading screws (by others). Manufacturer guidance for the 2010 ADA Accessibility Standards specifies positioning the towel-slot centerline no higher than 48 inches above the finished floor.
