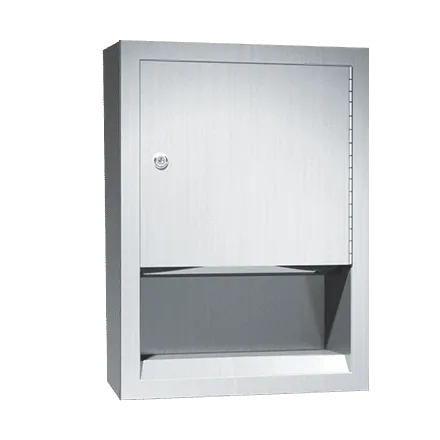

ASI 0457-9 Surface-Mounted Paper Towel Dispenser
Designed for smaller washrooms with less space and traffic, the ASI 0457-9 dispenses 350 C-fold or 475 multi-fold towels. Its surface-mounted cabinet has a stainless steel collar and a pull-type, self-feeding towel slot. Towels feed until the supply is depleted, and a partial load can remain in place when you refill.
The cabinet measures 12-3/4" W x 17-1/4" H x 4-1/4" D. It is Type 304 stainless steel with a satin finish. Install it on the wall using #10 self-threading screws, which are supplied by others; install the surface-mount collar on the cabinet before mounting it to the wall.
Refilling
Open the door with the provided key and load towels from the bottom through the two push-up flaps. When adding multi-fold towels to a partial stack, interleave the leading edge of the new towels with the trailing edge of the existing stack. For C-fold towels, load them with the flaps facing down.
