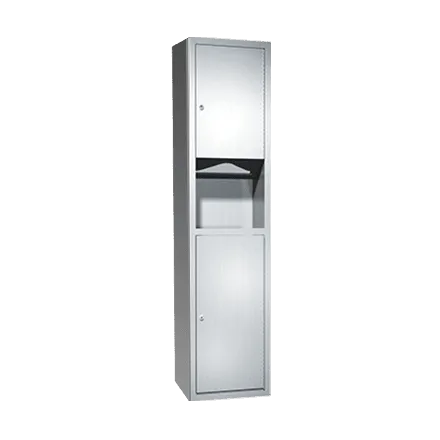

ASI 0467-9 Paper Towel Dispenser and Waste Receptacle
This surface-mounted combination unit dispenses 600 C-fold, 800 multi-fold, or 1,100 single-fold towels and includes a 7-gallon stainless steel waste receptacle. Its adjustable guide supports C-fold and multi-fold towels. The unit is satin-finish, 22-gauge Type 304 stainless steel and measures 13 inches wide by 55 inches high by 6-1/4 inches deep.
Installation and servicing
Install the -9 stainless steel collar on the cabinet before wall mounting. Mount through the concealed holes using #10 self-threading screws, which are by others. ASI's installation guidance for the 2010 ADA Accessibility Standards calls for the towel-outlet centerline to be no higher than 48 inches above the finished floor. Towels feed until depleted; a partial load can be added in place. The waste container is emptied manually as maintenance needs require.
