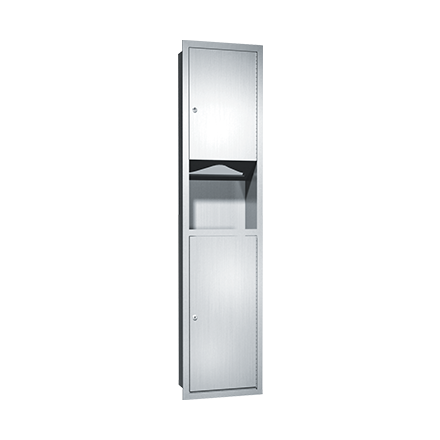

ASI 0467 Recessed Paper Towel Dispenser and Waste Receptacle
The ASI 0467 is a recessed combination paper towel dispenser and waste receptacle. It holds 7 gallons (26.5 L) of waste and dispenses several folded-towel formats. Confirm that the wall can accommodate the required rough opening before installation.
Specifications and installation
- Dispenses 600 C-fold, 800 multi-fold, or 1,100 single-fold towels. An adjustable guide supports C-fold or multi-fold towels.
- Includes a 7-gallon (26.5 L) stainless steel waste receptacle. Construction is 22-gauge Type 304 stainless steel with a satin finish.
- Overall dimensions: 13 inches W x 55 inches H x 6-1/2 inches D. Required rough wall opening: 11-1/2 inches W x 53-1/2 inches H x 6-1/4 inches D.
- Mount in the wall recess through concealed holes using #10 self-threading screws (by others). For the manufacturer's stated 2010 ADA installation guidance, position the towel-outlet centerline no higher than 48 inches above the finished floor.
- Users withdraw towels manually through the dispensing slot. Refill by unlocking the door and replacing towels; the manufacturer warranty is one year from the invoice date.
