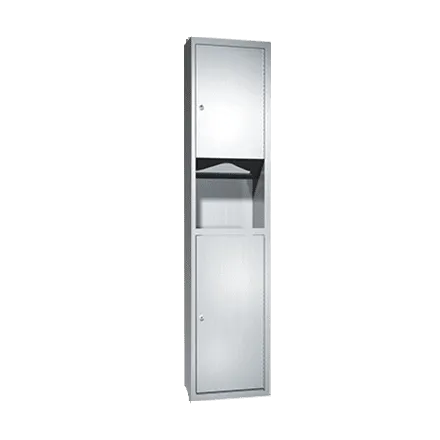

ASI 0467-2 Semi-Recessed Paper Towel Dispenser and Waste Receptacle
Dispenses 600 C-fold, 800 multi-fold, or 1,100 single-fold paper towels. An adjustable guide supports C-fold or multi-fold towels. The unit includes a 7-gallon stainless steel waste receptacle.
The unit is Type 304 stainless steel with a satin finish. It is semi-recessed with a 2-inch stainless steel collar; overall dimensions are 13 inches W x 55 inches H x 6-7/16 inches D.
Installation and service
- Requires a minimum rough wall opening of 11-1/2 inches W x 53-1/2 inches H x 4-7/16 inches D. Mount in the recess with #10 self-threading screws, which are supplied by others. Install the collar on the cabinet before mounting it in the recess.
- ASI's guidance for the 2010 ADA Accessibility Standards is to mount the towel-outlet centerline no higher than 48 inches above the finished floor.
- Towels self-feed until depleted; a partial towel load can be added in place. The removable waste receptacle is emptied manually according to maintenance needs.
