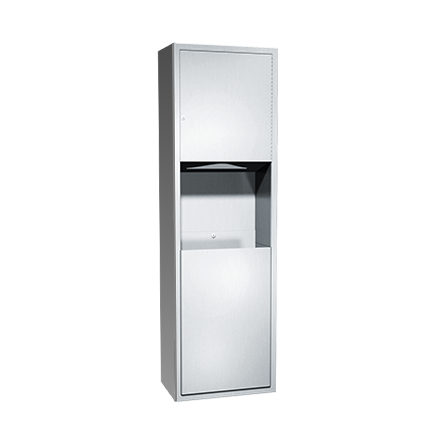

ASI 04697-9 Surface-Mounted Paper Towel Dispenser and Waste Receptacle
This combination unit dispenses 600 C-fold, 800 multifold, or 1,100 single-fold towels and includes a 12-gallon (46 L) waste receptacle. Towels are manually withdrawn through the slot; the adjustable guide supports C-fold or multifold towels, and the adapter helps feed towels until depleted. Refill by unlocking the door and replacing towels in an empty or partially empty unit. The locking compartment and receptacle retainer help prevent unauthorized access or removal.
The unit is Type 304 stainless steel with a satin finish and has a double-pan door with fiberboard filler and a heavy-duty stainless steel piano hinge. Overall dimensions are 17-1/4" W x 56" H x 7-1/4" D. It is surface mounted with the included -9 stainless steel collar.
Mounting
Secure the unit through its concealed mounting holes with #10 self-threading screws, which are by others. The manufacturer’s general-utility guidance specifies mounting the bottom of the unit 16" above the finished floor; for its stated 2010 ADA guidance, position the towel-outlet centerline no higher than 48" AFF. Install the surface-mount collar on the cabinet before mounting, following the collar data sheet.
