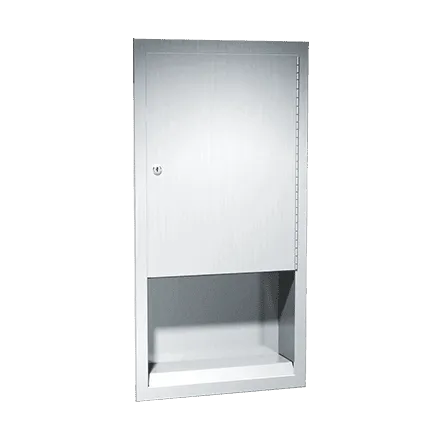

ASI 0452 Recessed Paper Towel Dispenser
The ASI 0452 is a manual, pull-type recessed dispenser for 600 C-fold or 800 multi-fold towels. Towels self-feed until the supply is depleted, and a partial load can be added in place and will continue to feed properly.
Specifications and installation
- Type 304 stainless steel with a satin finish; the towel slot has a fully hemmed edge.
- Cabinet dimensions: 14-1/4" W x 28" H x 4-1/4" D. Required rough wall opening: 12-3/4" W x 26-1/2" H x 4" minimum depth. Check the opening separately from the cabinet size when planning the recess.
- The door is held closed with a tumbler lock. Refill from the bottom through two push-up flaps.
- Recess-mount using #10 screws through the concealed mounting holes; screws are by others.
- ASI installation guidance references a maximum 48" AFF towel-slot centerline under its referenced 2010 ADA guidance and a 40" AFF slot height for CalDAG. Confirm the applicable project requirements and mounting location.
