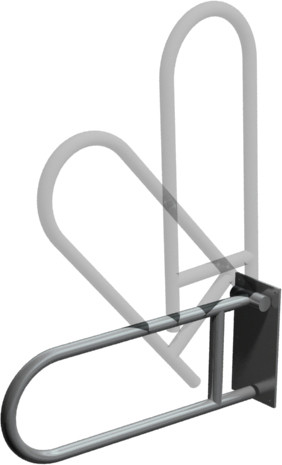

ASI 3413-25 Swing-Up Grab Bar with Integral Toilet Paper Roll Holder
The ASI 3413-25 is a surface-mounted swing-up grab bar with an integral toilet paper roll holder. It is fabricated from Type 304 stainless steel alloy 18-8 with a satin finish and is operable with one hand.
Product details
- 18-gauge bar tubing with a 1-1/4-inch outside diameter.
- Mounting plate: 9-gauge plate with seven 1/4-inch mounting holes; exposed flange is 3 inches in diameter.
- Welded construction with radiused, burr-free exposed edges and corners.
- The holder is a 3/8-inch solid formed rod with a chamfered end.
- A top stop bumper limits the raised arm’s movement; a plastic end cap cushions contact with the wall plate when lowered.
- Balance tension is adjustable with the clamp bolt.
Installation and operation
Use the bar as a template to mark mounting-hole locations and pre-drill. ASI specifies three #10 self-threading flat-head or oval-head screws (by others), or another suitable fastener system (by others) for each flange. Provide appropriate anchoring and wall backing for the installation conditions before finishing the wall. For installation in accordance with ASI’s 2010 ADA Accessibility Standards guidance, position the top of the bar 33 to 36 inches above the finished floor. The bar is lowered manually for support and raised for departure. Inspect operation periodically and adjust the clamp bolt as needed; use may loosen the tension over time.
ASI specifies a one-year warranty from the invoice date.
