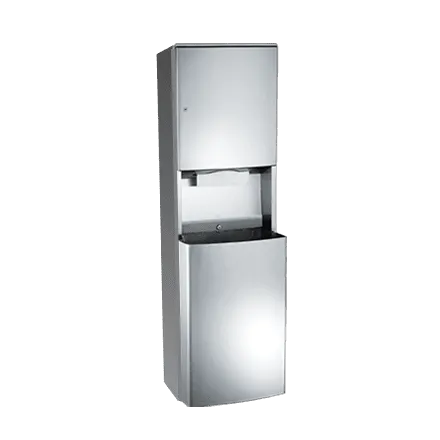

ASI 20469-9 Roval Surface-Mounted Paper Towel Dispenser and Waste Receptacle
The ASI 20469-9 is a surface-mounted combination dispenser for C-fold or multi-fold towels with a removable 14.8-gallon waste receptacle. Its key distinction is capacity for either 600 C-fold or 800 multi-fold towels, with continued feeding possible when a partial towel load remains during reloading.
Capacity and construction
- Holds 600 C-fold or 800 multi-fold paper towels; towels self-feed on manual demand until the supply is depleted.
- Removable waste receptacle holds 14.8 gal. (56 L); towel replenishment and waste removal are manual.
- Door is 18-gauge Type 304 stainless steel with a satin finish and heavy-duty 3/16-in. staked piano hinge.
- Surface mounts with a stainless steel collar; the door and receptacle lock to prevent unauthorized access or removal.
- Overall dimensions: 17-5/8 in. W x 56-5/16 in. H x 9-7/32 in. D.
Installation and placement
Mount to the wall through the concealed mounting holes using #10 self-threading flat-head screws (by others). For compliance with the 2010 ADA Accessibility Standards, the manufacturer specifies a maximum 48-in. AFF centerline for the towel outlet. For general utility, the manufacturer specifies a bottom-edge mounting height of 10–20-1/2 in. AFF; verify applicable local requirements.
