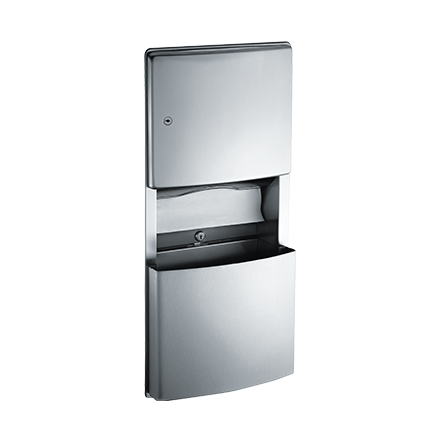

ASI 204623 Roval Recessed Paper Towel Dispenser and Removable Waste Receptacle
ASI model 204623 combines a recessed, manual-pull towel dispenser with a removable 3.0-gallon stainless steel waste receptacle. It holds 350 C-fold or 475 multi-fold towels. Towels self-feed on user demand until the supply is depleted, and the unit continues feeding when reloaded with a partial towel load in place.
Capacity and dimensions
- Towel capacity: 350 C-fold or 475 multi-fold towels.
- Waste receptacle: removable, 3.0-gallon stainless steel receptacle with a tumbler lock; emptied manually.
- Overall dimensions: 12-3/4 in. W x 28 in. H x 6-1/2 in. D.
- Minimum rough wall opening: 11-1/4 in. W x 26-7/16 in. H x 3-15/16 in. D.
- Door: 22-gauge Type 304 stainless steel with satin finish, flush lock, and heavy-duty 3/16-in. staked piano hinge.
Installation and servicing
Recess-mount with four #8 self-threading flat-head screws through the concealed mounting holes; screws are by others. For the manufacturer's stated 2010 ADA Accessibility Standards installation guidance, position the towel-slot centerline no higher than 48 in. above finished floor when clear-floor reach access is provided. For general-utility installation, place the unit's bottom edge at 40 in. AFF. The locked door and waste receptacle prevent unauthorized access or removal. Replenish towels and empty the receptacle manually.
